Org. Synth. 1932, 12, 40
DOI: 10.15227/orgsyn.012.0040
HIPPURIC ACID
Submitted by A. W. Ingersoll and S. H. Babcock.
Checked by Roger Adams and B. H. Wojcik.
1. Procedure

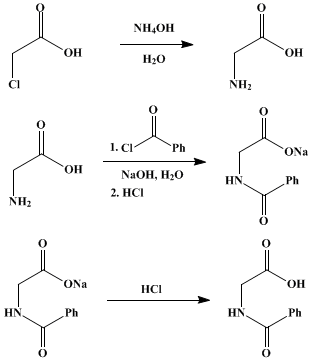

To 3 l. (approximately 45 moles) of concentrated ammonium hydroxide (sp. gr. 0.9) (Note 1) in a 5-l. round-bottomed flask is added, with shaking, a solution of 95 g. (1 mole) of chloroacetic acid (Note 2) in 100 cc. of water. The flask is stoppered and allowed to stand for four days (Note 3). It is then attached to a condenser for distillation, and the solution is concentrated to 600–700 cc. The excess ammonia is recovered during this process by connecting the lower end of the condenser to a wide tube leading to the bottom of a 3-l. bottle containing 1.5 l. of distilled water and connecting this in the same way with a smaller bottle containing a little water. The bottles are cooled by running water. About 2 l. of 20–23 per cent ammonium hydroxide is recovered in the first receiver (Note 1).
The residual solution is then transferred to a 2-l. beaker, a solution of 50 g. (1.25 moles) of sodium hydroxide in 100 cc. of water and a little decolorizing carbon are added, and the mixture is boiled until the odor of ammonia is completely absent (Note 4). The solution is filtered by suction, diluted to 500 cc. with water, and transferred to a 2-l. round-bottomed flask equipped with a mechanical stirrer and cooled by running water. While stirring and cooling below 30°, 150 g. (1.1 moles) of benzoyl chloride (Note 2) and a cold solution of 80 g. (2 moles) of sodium hydroxide in 200 cc. of water are admitted separately from separatory funnels at such rates that the solution is always only slightly alkaline. About an hour is required for adding the reagents, and the mixture is stirred for a half hour longer. It is then poured into 125 cc. of concentrated hydrochloric acid in a 2-l. beaker, and, after cooling, the precipitate is filtered and dried. The weight at this point is 150–160 g. The solid is placed in a beaker with 300 cc. of technical carbon tetrachloride, the beaker is covered with a watch glass, and the mixture is boiled gently for ten minutes. The mixture is then cooled slightly, filtered by gentle suction, and the hippuric acid washed on the filter with 50 cc. of carbon tetrachloride (Note 5). After drying, it weighs 135–140 g. For final purification the acid is dissolved in about 2 l. of boiling water, filtered through a steam-heated funnel and allowed to crystallize without artificial cooling. It then appears in characteristic white needles melting at 186–187°. The yield is 115–122 g. (64–68 per cent of the theoretical amount based on the chloroacetic acid used). Upon concentrating the mother liquor to 200 cc., a further 6–7 g. of slightly brown hippuric acid is obtained.
2. Notes
1. An equivalent amount of recovered ammonium hydroxide (sp. gr. 0.93 or less) was used in a number of runs without reducing the yield.
2. Eastman's "practical" grade reagents were used.
3. The yield was slightly less after two days and no greater after a week.
4. Ammonia must be completely removed to avoid the formation of benzamide.
5. Carbon tetrachloride may be recovered by making the filtrate and washings slightly alkaline with sodium hydroxide, refluxing for a half hour to destroy any benzoyl chloride, and then distilling with steam. Benzoic acid may be recovered by filtering the aqueous residue and acidifying.
3. Discussion
Hippuric acid has been prepared from the urine of herbivorous animals;1 by heating benzamide with chloroacetic acid;2 by heating benzoic anhydride and glycine;3 by heating benzoic acid and glycine;4 by heating benzoyl chloride with silver glycinate suspended in benzene,5 or with glycine and zinc oxide;6 and by the action of benzoyl chloride upon an alkaline solution of glycine.7
This preparation is referenced from:

References and Notes
  1. Gregory, Ann. 63, 125 (1847); Hallowachs, ibid. 106, 164 (1858); Henneberg, Stohmann, and Rautenberg, ibid. 124, 200 (1862).
  2. Jazukowitsch, Zeit. für Chem. 1867, 466.
  3. Curtius, Ber. 17, 1662 (1884).
  4. Dessaignes, Jahresb. 1857, 367.
  5. Curtius, J. prakt. Chem. (2) 26, 145 (1883).
  6. Dessaignes, Ann. 87, 325 (1853).
  7. Baum, Ber. 19, 502 (1886); Z. physiol. Chem. 9, 465 (1885).

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

hydrochloric acid (7647-01-0)

ammonia (7664-41-7)

Benzene (71-43-2)

sodium hydroxide (1310-73-2)

carbon tetrachloride (56-23-5)

Benzoic acid (65-85-0)

chloroacetic acid (79-11-8)

decolorizing carbon (7782-42-5)

benzoyl chloride (98-88-4)

Benzoic anhydride (93-97-0)

benzamide (55-21-0)

ammonium hydroxide (1336-21-6)

Glycine (513-29-1)

Hippuric acid (495-69-2)

zinc oxide

silver glycinate
