1,4-BIS(TRIMETHYLSILYL)BUTA-1,3-DIYNE
[Silane, 1,3-butadiyne-1,4-diylbis[trimethyl-]]
Submitted by Graham E. Jones, David A. Kendrick, and Andrew B. Holmes1.
Checked by James Armstrong and Clayton H. Heathcock.
1. Procedure

Caution! A serious explosion shattering the reaction flask has been reported to occur on one occasion since publication when carrying out this procedure. The experiment was performed at the described scale and the explosion occurred a few seconds after starting addition of the catalyst solution to the reaction flask through a syringe. The most plausible explanation for the explosion was an ignition of the acetone trimethylsilylacetylene) oxygen gas mixture by a spark directly in the flask. It is believed that the source of the spark was the discharge of static electricity accumulated on a plastic syringe when the metal needle of the syringe contacted the metallic tip of a digital thermometer (connected by a cable to IKA digital hotplate). Users are reminded of the absolute necessity to follow the submitted procedure, especially Notes 6-8. As indicated in Note 6, it is critical that this procedure (as well as any syntheses involving highly flammable compounds in an atmosphere of oxygen) is performed behind a safety shield and that all possible sources of ignition (including static electricity) are carefully examined and eliminated

A. Copper(I) chloridetetramethylethylenediamine complex. A 200-mL, three-necked, round-bottomed flask equipped with magnetic stirring bar, rubber septum, nitrogen inlet tube, and bubbler is charged with acetone (90 mL) and copper(I) chloride (5 g, 51 mmol) (Note 1). After the flask is purged with nitrogen, the mixture is stirred and N,N,N',N'-tetramethylethylenediamine (TMEDA) (2.5 mL, 16.6 mmol) (Note 2) is added. Stirring is maintained for 30 min, and the solid material is then allowed to settle, leaving a clear deep-blue-green solution of the CuClTMEDA catalyst that is used in the oxidative coupling reaction.
B. 1,4-Bis(trimethylsilyl)buta-1,3-diyne (BTMSBD). A 1-L, four-necked flask, equipped with a mechanical stirrer (Note 3), a dry-ice cold-finger condenser (Note 4), sintered gas inlet, and a swan-neck adapter that supports a thermometer and a rubber septum is charged with acetone (300 mL) and trimethylsilylacetylene (50 g, 0.51 mmol) (Note 5). The reaction mixture is agitated and a rapid stream of oxygen is passed through the solution (Note 6). The supernatant solution containing the CuClTMEDA catalyst is transferred by syringe in 5-mL portions into the reaction vessel. The temperature rises as the catalyst is added and should have reached 35°C after about 75% of the catalyst has been added. When this temperature is reached, external ice cooling is applied to moderate the exothermic reaction (Note 7). The remaining catalyst is added and the temperature is maintained in the range of 25–30°C for 2.5 hr (Note 8). When the reaction is complete, there should be no evidence of trimethylsilylacetylene condensing on the cold trap. Agitation and oxygenation are then stopped.
The acetone is removed by evaporation with a rotary evaporator, and the residue is dissolved in petroleum ether (bp 30–40°C, 150 mL) (Note 9) and shaken in a separatory funnel with 3 M aqueous hydrochloric acid (150 mL). The phases are separated and the aqueous phase is washed with petroleum ether (bp 30–40°C, 3 × 150 mL). The combined organic layers are washed with saturated aqueous sodium chloride (50 mL), dried (Na2SO4), and evaporated to dryness with a rotary evaporator. The solid residue is dissolved in hot methanol (400 mL) to which has been added 3 M aqueous hydrochloric acid (4 mL). The solution may be filtered at this stage if it is necessary to remove colored insoluble impurities. Water is then added dropwise until recrystallized material is permanently present. The solution is allowed to cool, finally in ice, and crystalline bis(trimethylsilyl)butadiyne (BTMSBD) is collected. The material is washed with a small portion of ice-cold methanol–water (50 : 50 v/v; 50 mL), and air-dried to give bis(trimethylsilyl)butadiyne (31–35 g, 68–76%), mp 111–112°C (lit.2,3 107–108°C) (Note 10). A further 3–5 g (6–10%) of the product is obtained from the mother liquors (Note 11) and (Note 12).
2. Notes
1. Copper(I) chloride, standard laboratory reagent (SLR) grade, was used as supplied by Fisons Scientific Apparatus Ltd. Best results are obtained with fresh samples of copper(I) chloride which usually contains ≤2% copper(II) chloride. Further purification4 did not improve the yield of BTMSBD. The checkers used Mallinckrodt Chemical Company, analytical reagent-grade copper(I) chloride, without further purification.
2. N,N,N',N'-Tetramethylethylenediamine (TMEDA) (98%) was used as supplied by B. D. H. The checkers used 99% TMEDA, as supplied by Aldrich Chemical Company, Inc.
3. Mechanical stirring is adequate for a 50-g scale, as described herein, and magnetic stirring is sufficient for a 5-g scale. The submitters ran the procedure on a 200-g scale, and found that use of a Vibro-mixer is essential to obtain satisfactory oxygenation of the reaction mixture. The Vibro-mixer model E-1 was supplied by Chemap AG, Alte Landstr. 415, CH-8708, Mannedorf, Switzerland.
4. The reactant is sufficiently volatile in the fast oxygen stream that substantial loss of material occurs unless a cold-finger condenser with a large contact area, charged with dry ice–2-propanol, is used. The use of a short Vigreux column between the dry-ice condenser and the reaction vessel is strongly recommended to provide additional protection against loss of material as an aerosol.
5. Trimethylsilylacetylene is prepared by silylation of ethynylmagnesium chloride as described elsewhere in this volume (Org. Synth., Coll. Vol. VIII, 1993, 606). It is also commercially available from the Aldrich Chemical Company, Inc.
6. Caution! Although no hazard has been encountered in this reaction, due care should be taken with acetylenic compounds in an atmosphere of oxygen. The experiment should be conducted in a well-ventilated hood behind a safety shield and away from any source of ignition. Dilution of exit gases (T-joint) with nitrogen is strongly advised.
7. On two occasions the temperature was observed by the checkers to reach 35°C well before 75% of the catalyst had been added. The temperature should be monitored closely during this addition. If ice cooling is necessary, it is important to lower the temperature only to 25°C; otherwise the reaction will become too sluggish. After the internal temperature is brought to 25°C, further cooling is not needed during addition of the remaining catalyst.
8. A deep-blue-green coloration should be evident throughout the addition of the catalyst. The color is determined by the rate of oxygen flow. Too high a flow rate can lead to overoxidation, producing a black precipitate, whereas too low a flow rate can lead to overreduction of the catalyst, with the green color fading to be replaced by an orange-red precipitate. Both factors reduce the yield of BTMSBD.
9. The checkers used pentane instead of petroleum ether.
10. The checkers observed mp 109–110°C for all crops.
11. Yields of 95% on a 5-g scale and 70–75% on a 200-g scale were reproducibly obtained by the submitters.
12. Pure bis(trimethylsilyl)butadiyne exhibits the following spectroscopic data: IR (CCl4) cm−1: 2080 (s), 1250 (s), and 650 (s); UV (C6H12) nm max(ε): 224 (80), 235 (150), 248 (260), 262 (345), and 278 (250); 1H NMR (CDCl3, 250 MHz) δ: 0.22 (18 H).
3. Discussion
Oxidative coupling of terminal acetylenes in the presence of copper(I) catalysts is the best method of preparing symmetrically substituted butadiyne derivatives,5 and has been applied to the coupling of trimethylsilylacetylene.6 Better yields are obtained using the Hay procedure in which the catalyst is the TMEDA complex of copper(I) chloride.7 The procedure submitted here is an improved version of Walton and Waugh's synthesis of BTMSBD by the Hay coupling of trimethylsilylacetylene.2 BTMSBD has also been prepared by silylation of butadiynedimagnesium bromide3 and chloride8 in moderate yield, and more recently from the dilithium derivative in good yield.9
BTMSBD is a very convenient source of butadiyne, an extremely useful, but dangerously explosive chemical.10 It is also a synthon for the vinylacetylene anion. A single trimethylsilyl group can selectively be replaced by reaction with electrophiles (Friedel–Crafts reaction) to give trimethylsilylbutadiynyl ketones.2

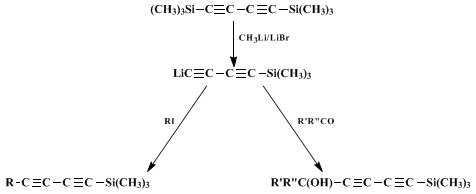

Alternatively, a more nucleophilic anionic reagent can be generated by selective cleavage of a single trimethylsilyl group with methyllithiumlithium bromide complex.11 This lithiobutadiyne derivative will react with electrophiles such as carbonyl compounds11,12 or primary alkyl iodides.13

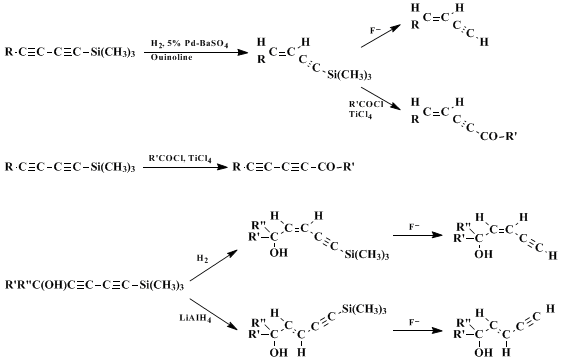

Regio- and stereoselective reduction of the nonsilylated triple bond by either partial catalytic hydrogenation13,14,15,16 or lithium aluminum hydride reduction of the propargylic alcohols,12,17,18 affords (after desilylation), respectively, terminal (Z)- and (E)-enynes. Furthermore, the remaining trimethylsilyl group in both silylated diynes and enynes may be replaced by another electrophile in a second Friedel–Crafts reaction.19
Such reactions have found a variety of applications in natural product synthesis.12,14,15,17,18,20
BTMSBD reacts with a variety of nucleophiles to give novel heterocycles such as selenophen,21 tellurophen,22 and pyrazoles.23 It has also been used in [2 + 4] cycloaddition/cycloreversion sequences to prepare ethynyl-substituted pyridazines24 and furans.25
