Org. Synth. 1995, 72, 209
DOI: 10.15227/orgsyn.072.0209
REACTION OF SULFOXIDES WITH DIETHYLAMINOSULFUR TRIFLUORIDE: FLUOROMETHYL PHENYL SULFONE, A REAGENT FOR THE SYNTHESIS OF FLUOROALKENES
[Benzene, [(fluoromethyl)sulfonyl]-]
Submitted by James R. McCarthy, Donald P. Matthews, and John P. Paolini1.
Checked by Carmen M. Simone and Albert I. Meyers.
1. Procedure
CAUTION! All reactions should be conducted in an efficient fume hood.

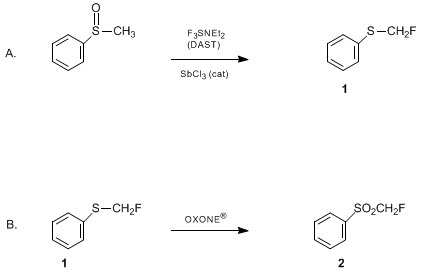

A. Fluoromethyl phenyl sulfide (1). To a 1-L, three-necked, round-bottomed flask, equipped with a magnetic stirring bar, air condenser and thermometer are added methyl phenyl sulfoxide (25.2 g, 0.18 mol) (Note 1) and chloroform (150 mL) (Note 2). The flask is placed in a cooling bath containing 3 L of water kept at 20°C (Note 3). Diethylaminosulfur trifluoride (DAST) (38.5 g, 31.6 mL, 0.24 mol) (Note 4) is added to the flask, followed by antimony trichloride (0.50 g, 0.0022 mol) (Note 5), and an additional 50 mL of chloroform. The light yellow reaction mixture is stirred under an argon atmosphere. After 2 to 8 hr, an exothermic reaction is observed and the solution turns dark orange (Note 6). The reaction mixture is poured slowly with stirring into 600 mL of ice-cold, saturated, aqueous sodium bicarbonate containing 10 g (0.25 mol) of sodium hydroxide (CAUTION: gas evolution). After 10 min, the chloroform layer is separated and the remaining aqueous layer is extracted with additional chloroform (3 × 100 mL). The combined organic layers are washed with saturated aqueous sodium bicarbonate (250 mL), saturated aqueous sodium chloride, and dried over potassium carbonate. The chloroform is removed with a rotary evaporator at 30–40°C and the crude fluoromethyl phenyl sulfide 1 (ca. 29 g), obtained as a yellow orange oil, is used immediately in the next step (Note 7) and (Note 8).
B. Fluoromethyl phenyl sulfone (2). To a 3-L, three-necked, round-bottomed flask, equipped with an overhead stirrer, thermometer, and 1-L addition funnel with sidearm are added Oxone (221.0 g, 0.36 mol) (Note 9) and water (700 mL). The mixture is cooled to 5°C and a solution of the crude fluoromethyl phenyl sulfide (1) in methanol (700 mL) is placed in the addition funnel and added in a slow stream to the stirring slurry. After addition of the sulfide, the reaction mixture is stirred at room temperature for 4 hr, (Note 10) and the methanol is removed on a rotary evaporator at 40°C. The remaining solution is extracted with methylene chloride (2 × 500 mL). The combined organic layers are dried over magnesium sulfate, concentrated to ca. 150 mL, filtered through a plug of silica gel (230–400 mesh, 300 mL, 10 × 6.5 cm), and washed with an additional 500 mL of methylene chloride (Note 11). The colorless filtrate is concentrated and the resulting oil or solid is dried under vacuum (0.1 mm) at room temperature to provide 29 g of crude fluoromethyl phenyl sulfone (2) as a solid white mass. The solid is recrystallized from 250 mL of hot hexane (forms two layers) by cooling the two phase solution to room temperature with vigorous stirring and adding a seed crystal. The resulting white crystals of fluoromethyl phenyl sulfone (2) (25.0–28.5 g, 80–90%) are collected by filtration, mp 53–55°C (Note 12) and (Note 13).
2. Notes
1. Methyl phenyl sulfoxide was purchased from Aldrich Chemical Company, Inc., and used as received.
2. Chloroform is a suspected carcinogen. Follow manufacturer's recommended procedures for handling, storage, and disposal.
3. Both a sizable head space and a large heat sink are essential for this reaction since a vigorous, but latent, exothermic reaction occurs (see (Note 5)). This reaction was run twelve times without incident on a 25–125-g scale following these precautions.
4. Diethylaminosulfur trifluoride (DAST) should be handled using appropriate safety equipment (rubber gloves and goggles). DAST was purchased from Carbolabs, Inc., and used as received.
5. Antimony trichloride was purchased from Aldrich Chemical Company, Inc. and used as received. Excess antimony trichloride can cause a vigorous reaction.
6. Progress of the reaction can be followed by gas chromatography, TLC (ethyl acetate/hexane 1:5) or 1H NMR. (Probe reactions can be carried out in CDCl3 in an NMR tube).
7. Alternatively, the chloroform solution can be treated with 2 equiv of 3-chloroperbenzoic acid (MCPBA) to provide fluoromethyl phenyl sulfone (see reference 2).
8. The crude sulfide is readily purified by Kugelrohr distillation (bp 80–90°C, 0.8 mm), but the colorless liquid polymerizes to a white solid on standing overnight. A solution of the sulfide in chloroform was stored at −10°C for 2 days on one occasion with no decomposition, 1H NMR (300 MHz, CDCl3) δ: 5.72 (d, 2 H, J = 52.9), 7.29–7.52 (m, 5).
9. Oxone (potassium peroxymonosulfate, 2 KHSO5·KHSO4·K2SO4) was purchased from Aldrich Chemical Company, Inc.
10. Progress of the oxidation can be followed by TLC (ethyl acetate/hexane 1:5). The checkers found that the product crystallized from water when the methanol was removed.
11. Alternatively, the organic layer is concentrated to an oil and 2 is purified by Kugelrohr distillation, bp 120–125°C (1 mm).
12. The two step reaction was run on a 125-g scale with an overall yield of 88%.
13. The physical properties are as follows: 1H NMR (300 MHz, CDCl3) δ: 5.15 (d, 2 H, J = 47.1), 7.60–8.00 (m, 5 H); 19F NMR (282 MHz, CDCl3) δ: −211.2 (t, J = 47.4); MS (EI) m/z 175 (M+·); Anal. Calcd for C7H7FO2S: C, 48.26; H, 4.05. Found: C, 48.35, H, 3.94.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
The first step of the present procedure is an example of the fluoro Pummerer or DAST Pummerer reaction3 and describes a convenient method for the synthesis of α-fluoro sulfides. α-Fluoro sulfides can subsequently be oxidized to the corresponding sulfoxide or sulfone. For aromatic sulfoxides, use of the 4-anisyl group can dramatically improve the yield and facility of the reaction. The submitters originally found that zinc iodide catalyzes the reaction.3 Recently, Robins and co-workers4,5 have reported that antimony trichloride is a superior catalyst for this transformation, eliminating the need for a 4-methoxy group for the conversion of aryl sulfoxides to α-fluoro sulfides. The submitters have subsequently utilized this catalyst in place of zinc iodide.2,6
In most cases, the fluoro Pummerer reaction can be carried out with 1.33 to 2.0 equiv of DAST and a "catalytic" amount of antimony trichloride in either refluxing methylene chloride or chloroform at room temperature or 50°C. In the synthesis of fluoromethyl phenyl sulfide, however, the induction period makes room temperature conditions the preferred method for large scale synthesis.
Electron-withdrawing groups decrease the rate of the fluoro Pummerer reaction, which, in certain cases,7 allows a DAST-mediated deoxygenation to compete with the introduction of fluorine alpha to sulfur. The reaction is compatible with a number of functional groups and can readily be carried out with nucleosides. Robins and co-workers4 reported the synthesis of a 5'-fluoro-5'-S-phenyladenosine analog using antimony trichloride as catalyst at room temperature. It should be noted that α-fluoro sulfoxides provide a convenient entry to terminal fluoroalkenes.3,8,9,10
In most cases, introduction of fluorine adjacent to sulfur can be monitored by proton NMR for small-scale probe reactions run in CDCl3. The CHF peaks in the proton NMR are generally found between δ 5 and 6 ppm (with proton-fluorine coupling constants around 55) and fall below the range for protons on DAST.
For the synthesis of the title compound, Oxone or 3-chloroperbenzoic acid2 can be used to oxidize the sulfide to the sulfone. The title compound is a key reagent for the preparation of fluoroalkenes from aromatic11 and aliphatic2 aldehydes. Recently, a stereospecific method to (E)- and (Z)-fluoroalkenes was reported using this reagent.12,13,14
This preparation is referenced from:

References and Notes
  1. Marion Merrell Dow Research Institute, 2110 E. Galbraith Rd., Cincinnati, OH 45215.
  2. McCarthy, J. R.; Matthew, D. P.; Edwards, M. L.; Stemerick, D. M.; Jarvi, E. T. Tetrahedron Lett. 1990, 31, 5449.
  3. McCarthy, J. R.; Peet, N. P.; LeTourneau, M. E.; Inbasekaran, M. J. Am. Chem. Soc. 1985, 107, 735.
  4. Robins, M. J.; Wnuk, S. F. Tetrahedron Lett. 1988, 29, 5729.
  5. Wnuk, S. F.; Robins, M. J. J. Org. Chem. 1990, 55, 4757.
  6. Matthews, D. P.; McCarthy, J. R. J. Org. Chem. 1990, 55, 2973.
  7. Krishnan, G.; Sampson, P. Tetrahedron Lett. 1990, 31, 5609.
  8. McCarthy, J. R.; Jarvi, E. T.; Matthews, D. P.; Edwards, M. L.; Prakash, N. J.; Bowlin, T. L.; Mehdi, S.; Sunkara, P. S.; Bey, P. J. Am. Chem. Soc. 1989, 111, 1127.
  9. Jarvi, E. T.; McCarthy, J. R.; Mehdi, S.; Matthews, D. P.; Edwards, M. L.; Prakash, N. J.; Bowlin, T. L.; Sunkara, P. S.; Bey, P. J. Med. Chem. 1991, 34, 647.
  10. Reutrakul, V.; Rukachaisirikul, V. Tetrahedron Lett. 1983, 24, 725.
  11. Inbasekaran, M.; Peet, N. P.; McCarthy, J. R.; LeTourneau, M. E. J. Chem. Soc., Chem. Commun. 1985, 678.
  12. Moore, W. R.; Schatzman, G. L.; Jarvi, E. T.; Gross, R. S.; McCarthy, J. R. J. Am. Chem. Soc. 1992, 114, 360.
  13. McCarthy, J. R.; Matthews, D. P.; Stemerick, D. M.; Huber, E. W.; Bey, P.; Lippert, B. J.; Snyder, R. D.; Sunkara, P. S. J. Am. Chem. Soc. 1991, 113, 7439.
  14. McCarthy, J. R.; Matthews, D. P.; Paolini, J. P. Org. Synth., Coll. Vol. IX 1998, 442.

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

silica gel

DAST

3-chloroperbenzoic acid (MCPBA)

Oxone (potassium peroxymonosulfate, 2 KHSO5·KHSO4·K2SO4)

potassium carbonate (584-08-7)

ethyl acetate (141-78-6)

methanol (67-56-1)

sodium hydroxide (1310-73-2)

chloroform (67-66-3)

oxone (37222-66-5)

sodium bicarbonate (144-55-8)

sodium chloride (7647-14-5)

antimony trichloride (7647-18-9)

methylene chloride (75-09-2)

magnesium sulfate (7487-88-9)

hexane (110-54-3)

argon (7440-37-1)

zinc iodide

Methyl phenyl sulfoxide (1193-82-4)

Diethylaminosulfur trifluoride (38078-09-0)

3-chloroperbenzoic acid (937-14-4)

Fluoromethyl phenyl sulfone,
Benzene, [(fluoromethyl)sulfonyl]- (20808-12-2)

Fluoromethyl phenyl sulfide (60839-94-3)

5'-fluoro-5'-S-phenyladenosine
