Org. Synth. 2000, 77, 236
DOI: 10.15227/orgsyn.077.0236
3-NITROPROPANAL, 3-NITROPROPANOL, AND 3-NITROPROPANAL DIMETHYL ACETAL
[ Propanal, 3-nitro-; 1-Propanol, 3-nitro-; and Propane, 1,1-dimethoxy-3-nitro- ]
Submitted by H. Griesser, R. Öhrlein, W. Schwab, R. Ehrler, and V. Jäger1 .
Checked by James P. Davidson and Stephen F. Martin.
1. Procedure
Caution! Distillation of nitroalkanes in general should be conducted behind a safety shield. To avoid decomposition of distillation residues the distillation apparatus should be cooled to 0°C prior to ventilating with inert gas.
A. 3-Nitropropanal (1). A 1-L, round-bottomed flask equipped with a magnetic stirring bar, a 50-mL pressure-equalizing dropping funnel, and a Schlenk-type adapter to keep the reaction mixture under nitrogen (Note 1), is charged with 43.5 g (0.630 mol) of sodium nitrite (Note 2), 125 mL of water (Note 3), and 200 mL of tetrahydrofuran (Note 4). To the well-stirred solution at 0°C is added 33.4 mL (28.0 g, 0.500 mol) of acrolein (Note 5), then 31.5 mL (33.0 g, 0.550 mol) of acetic acid is added over a period of 30-45 min (Note 6). The reaction mixture is stirred at 0°C for another 3 hr. Then 250 mL of ethyl acetate (Note 7) and 100 mL of aqueous saturated sodium bicarbonate are added and the reaction mixture is transferred to a 1-L separatory funnel for complete neutralization, by thorough, but cautious shaking (CO2 gas develops). The aqueous phase is separated and extracted with ethyl acetate (3 × 50 mL, (Note 7)). The organic layers are combined and washed with brine (3 × 20 mL), dried (MgSO4, with stirring for 2 hr), filtered, and concentrated by rotary evaporation (20 mbar, 15 mm, 30°C). The yellow oil obtained is submitted to azeotropic distillation with toluene (2 × 50 mL, 20 mbar, 15 mm, 30°C) to remove residual water and acetic acid to give 46.0-47.0 g (89-91%) of 1 (Note 8), (Note 9). This material is used without further purification in parts B and C.
B. 3-Nitropropanol (2). A 1-L, round-bottomed flask, equipped with a magnetic stirring bar and a Schlenk-type adapter (Note 1), is charged with 47.0 g (0.456 mol) of crude 3-nitropropanal and 450 mL of methanol (Note 10). To the stirred solution at −20°C (Note 11) is added 17.26 g (0.456 mol) of sodium borohydride (Note 12) in 10 portions over a period of 30 min; stirring at this temperature is continued for 1 hr. Methyl orange (0.1 mL of 0.1% solution in water) is added to the solution, followed by about 50 mL of 7.5 N hydrochloric acid in methanol (Note 13) until the suspension turns pink (Note 14). After stirring is continued at −20°C for another 30 min, the mixture is allowed to warm to room temperature over a period of 15 min and then concentrated by rotary evaporation (30°C, 20 mbar, 15 mm). The pink residue is treated with 85 g of ice and 450 mL of ethyl acetate (Note 7), then transferred to a 1-L separatory funnel. The organic layer is separated and washed with a mixture of 1 N aqueous potassium bicarbonate and brine (2 × 20 mL, 1:3). The aqueous layers are combined and extracted with ethyl acetate (2 × 100 mL, (Note 7)) as described above. The combined organic solutes are thoroughly dried (MgSO4, stirring for 2 hr), filtered, and concentrated by rotary evaporation (20 mbar, 15 mm, 30°C). The residual yellow oil is purified by distillation (Note 8) in a Kugelrohr apparatus (air bath temperature: 70°C, 0.034 mbar, 0.02 mm; the product is collected by cooling with ice; duration of the distillation: ca. 90 min) to yield 34.3-34.8 g (73-74%; 65-66%, overall) of pure 3-nitropropanol as a pale yellow oil (Note 15).
C. 3-Nitropropanal dimethyl acetal (3). A 1-L, round-bottomed flask, equipped with a magnetic stirring bar and a Schlenk-type adapter (Note 1), is charged with 47.0 g (0.456 mol) of crude 3-nitropropanal , 150 mL of methanol (Note 10) and 63.7 g (0.600 mol) of trimethyl orthoformate (Note 16). The stirred solution is cooled to 0°C, then 1.8 g of p-toluenesulfonic acid monohydrate (Note 17) is added and the mixture is stirred at room temperature for 4 hr (Note 18). After the volatile material is removed on a rotary evaporator (20 mbar, 15 mm, 30°C), the remaining dark liquid is neutralized with 30 mL of aqueous saturated sodium bicarbonate and diluted with 50 mL of ethyl acetate (Note 7). The mixture is transferred to a 500-mL separatory funnel, and the aqueous layer is separated and extracted with ethyl acetate (3 × 50 mL). The combined organic layers are washed with brine (2 × 20 mL), treated with MgSO4 and 0.5 g of charcoal (Note 19), filtered, and concentrated by rotary evaporation (20 mbar, 15 mm, 30°C). The residual dark-yellow oil is purified by distillation (Note 8) in a Kugelrohr apparatus (air bath temperature: 55°C, 0.4 mbar, 0.3 mm); the product is collected by cooling with ice; duration of the distillation: ca. 90 min) to afford 46.2-48.2 g (68-71%; 63-65% overall) of pure 3-nitropropanal dimethyl acetal as a pale yellow oil (Note 20), (Note 21).
2. Notes
1. The reaction mixture is kept under nitrogen passed through a Sicapent® (E. Merck) drying tube.
2. Sodium nitrite (NaNO2) p.a. was obtained in 1-kg samples from Merck-Schuchardt, Hohenbrunn, Germany .
3. Smaller amounts of water decrease the yield of 3-nitropropanal. If absolute solvents and reagents are used, only 10% of the nitroaldehyde is obtained.
4. Tetrahydrofuran (THF) p.a. was purchased from Merck-Schuchardt, Hohenbrunn, Germany .
5. Acrolein p.a. from Merck-Schuchardt, Hohenbrunn, Germany was distilled prior to use through a 20-cm, silver-plated, Vigreux column with a 4-cm outer and 1.5-cm inner diameter (bp 52°C).
6. The reaction is carried out in the dark to avoid decomposition and side reactions. Acetic acid p.a. was obtained from Merck-Schuchardt, Hohenbrunn, Germany .
7. Ethyl acetate (technical grade) was purified by distillation. The checkers found that reagent grade ethyl acetate could be used without purification.
8. Caution! See introductory warning. The submitters report that 1 can be distilled in a Kugelrohr apparatus using a manifold with high-vacuum stopcocks (air bath temperature: 55°C, 0.001 mbar, 0.0007 mm); the product is collected by cooling with ice; duration of the distillation: ca. 90 min; ventilation with nitrogen should occur after ice-cooling of the distillation flask) to afford analytically pure, almost colorless 1 in 75% yield (GLC analysis: Rt = 7.1 min, content of 1 >99%, see (Note 9) for conditions). Explosion hazard! Do not attempt to distill 1 unless 0.001 mbar (0.0007 mm) vacuum is available; the temperature of the bath should not exceed 60°C. The checkers found that distillation of the product at 0.04 mbar (0.03 mm), 70°C gave 35-40% yield of 1 as a yellow oil, and that the distillation residues, even when cooled and ventilated with an inert atmosphere, were prone to violent decomposition.
9. GLC analysis is as follows: Rt = 7.1 min, content of 1 >95% [column PS 086/.32 mm × 20 m glass capillary, 86:14 dimethyl/phenyl silicone; on-column injection; program: T1 = 40°C (1 min), rate 5°C/min, T2 = 300°C; carrier gas: 0.4 bar (300 mm) H2]. The content of 1 is >90% according to 1H and 13C NMR. The product thus obtained decomposes on storage and should be used for further transformations within a few days. The spectroscopic data of 3-nitropropanal are as follows: 13C NMR (125 MHz, CDCl3) δ: 39.5, 67.7, 197.2 ; 1H NMR (500 MHz, CDCl3) δ: 3.19 (t, 2 H, J = 6.0), 4.69 (t, 2 H, J = 6.0), 9.79 (s, 1 H) ; IR (CHCl3) cm−1: 2844, 1723, 1561, 1375 ; mass spectrum (CI) m/z 104.0350 [C3H6NO3(M+1) requires 104.0348] 104 (base), 86 .
10. Methanol p.a. was obtained from Merck-Schuchardt, Hohenbrunn, Germany .
11. The temperature of the isopropyl alcohol bath was monitored by a cold finger device TK-300, Fryka Kältetechnik, Germany.
12. Sodium borohydride (NaBH4) was obtained in 100-g samples (>97%) from Fluka Feinchemikalien GmbH, Neu-Ulm, Germany .
13. Hydrogen chloride, passed through a Sicapent® (E. Merck) drying tube, was fed into 500 mL of methanol (Note 10) over a period of 15 min at 0°C. The titer of the solution (7.5 N) was determined by titration with 1.0 N sodium hydroxide, Titriplex Merck-Schuchardt, Hohenbrunn, Germany against phenolphthalein as indicator.
14. The checkers found that pH indicator paper (sensitivity +/− 1 pH unit) can also be used to monitor the acidity of the solution to pH 3.
15. GLC analysis (see (Note 9) for conditions): Rt = 8.3 min, content of 2 >98%. For further purification the submitters find that the product can be distilled under reduced pressure through a 35-cm, silver-plated Vigreux column with 6-cm outer and 2-cm inner diameter (bp = 65-67°C, 0.001 mbar, 0.0007 mm); purity from GLC analysis >99.5%). The spectroscopic data of 3-nitropropanol are as follows: 13C NMR (125 MHz, CDCl3) δ: 29.8, 58.9, 72.6 ; 1H NMR (500 MHz, CDCl3) δ: 2.24 (tt, 2 H, J = 5.8, 6.8), 2.56 (bt, 1 H, J = 4.6), 3.73 (dt, 2 H, J = 4.6, 5.8), 4.55 (t, 2 H, J = 6.8) ; IR (CHCl3) cm−1: 3620, 3424, 2939, 2891, 1552, 1433, 1382 ; mass spectrum (CI) m/z 106.0503 [C3H8NO3(M+1) requires 106.0504] 106 (base), 88 .
16. Trimethyl orthoformate (>97%) was obtained from Fluka Feinchemikalien GmbH, Neu-Ulm, Germany and distilled prior to use, bp 101°C.
17. p-Toluenesulfonic acid monohydrate (99%) was obtained from Fluka Feinchemikalien GmbH, Neu-Ulm, Germany.
18. The progress of the reaction was monitored by TLC: Rf (3-nitropropanal) = 0.35, Rf (3-nitropropanal dimethyl acetal) = 0.53, Kieselgel 60 F254, Merck-Schuchardt, Hohenbrunn, Germany; eluent: ethyl acetate/hexane (3:7).
19. Charcoal p.a., obtained from Merck-Schuchardt, Hohenbrunn, Germany , was used to decolorize the dark brown solution.
20. GLC analysis (see (Note 9) for conditions): Rt = 12.9 min, content of 3 >99%. The spectroscopic data of 3-nitropropanal dimethyl acetal 3 are as follows: 13C NMR (125 MHz, CDCl3) δ: 30.5, 54.0, 71.2, 101.9 ; 1H NMR (500 MHz, CDCl3) δ: 2.31 (dt, 2 H, J = 5.4, 6.8), 3.37 (s, 6 H), 4.46 (t, 2 H, J = 6.8), 4.48 (t, 1 H, J = 5.4) ; IR (CHCl3) cm−1: 2938, 2837, 1556, 1447, 1378 ; mass spectrum (CI) m/z 150.0761 [C5H12NO4(M+1) requires 150.0766] 118 (base), 150 .
21. From 1, various other acetals are available under standard conditions, cf. Section 3 (Discussion). For example, following the described procedure, submitters indicate that 3-nitropropanal diethyl acetal is prepared by reaction of 30.9 g (0.300 mol) of 3-nitropropanal , 53.4 g (0.360 mol) of triethyl orthoformate , and 1.0 g of p-toluenesulfonic acid monohydrate in 100 mL of ethanol ; yield: 44.5 g (84%). GLC analysis (see (Note 9) for conditions): Rt = 14.5 min, content >99.5%. The spectroscopic data of 3-nitropropanal diethyl acetal are as follows: 13C NMR (125 MHz, CDCl3) δ: 15.2, 31.5, 62.6, 71.4, 100.0 ; 1H NMR (500 MHz, CDCl3) δ: 1.21 (t, 6 H, J = 7.0), 2.30 (dt, 2 H, J = 5.3, 6.8), 3.51 (dq, 2 H, J = 7.0, 9.3), 3.68 (dq, 2 H, J = 7.0, 9.3), 4.49 (t, 2 H, J = 6.8), 4.61 (t, 1 H, J = 5.3) .
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion

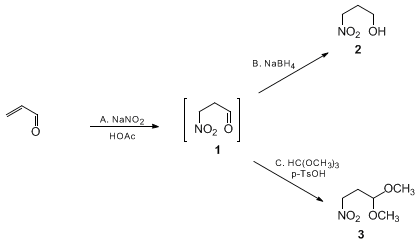

This procedure describes the preparation of 3-nitropropanal, 1, employing the rarely encountered 1,4-addition of ambident nitrite ion with its "softer" N-atom,2 and further transformations of 1, as reported earlier.3 A similar preparation of 3-nitrobutanal from crotonaldehyde (3-butenal) is known,4 as well as analogous additions to α,β-enones.2 The reduction of 1 to the alcohol 2, originally carried out with borane-dimethyl sulfide (BMS),3 is now more conveniently and economically done with sodium borohydride. The acetalization of 1 to yield the dimethyl acetal 3 is based on our earlier report.3
Two further preparations of 3-nitropropanal 1 have been claimed in the literature: by treatment of 1-chloro-3-nitro-2-propanol with potassium hydroxide ,5 and by reaction of the 4-isopropyl-2-oxazolin-5-one anion with nitroethene .6 These alternate methods are less suited and less economic for the preparation of 3-nitropropanal 1 on a multigram scale.
Procedures for the preparation of the acetals of 3-nitropropanal 1 7 8 9 10 have been reported from acrolein, by addition of hydrogen bromide in the presence of the corresponding alcohol (diol)11 followed by bromide/nitrite exchange.12 3-Nitropropanol has been obtained similarly from 3-iodo- or 3-bromopropanol with silver nitrite 13 14 and by reduction of 3-nitropropionic acid with diborane ,15 or better, with borane-dimethyl sulfide (BMS).3 The use of 3-nitropropionic acid as a starting material is hampered by the fact that the common precursor, β-propiolactone, is toxic and mutagenic (LDL0 50 mg, oral, rat; carcinogenic group III, <1-0.1%);16 its fumes or aerosols inflame the skin, and on inhalation it can produce pulmonary edema.17
Aliphatic nitro compounds are versatile building blocks and intermediates in organic synthesis,18 19 20 21,22 23 24 25 cf. the overview given in the Organic Syntheses preparation of nitroacetaldehyde diethyl acetal.26 For example, Henry and Michael additions, respectively, lead to 1,2- and 1,4-difunctionalized derivatives.18,19,20,21,22,23,24,25,26,27,28 29 30 1,3-Difunctional compounds, such as amino alcohols or aldols are accessible from primary nitroalkanes by dehydration/1,3-dipolar nitrile oxide cycloaddition with olefins (Mukaiyama reaction),31 followed by ring cleavage of intermediate isoxazolines by reduction or reduction/hydrolysis.32 33 34 35 36 37 38,39 40 41
For synthesis of more complex target molecules by these strategies, nitroalkanes with additional O-functions are often required. Specifically, the above CC-forming additions lead to a variety of 1,3,4-, 1,3,5- and 1,3,6-functionalized structures, as shown with 3 (or nitropropyl ethers, from 2).

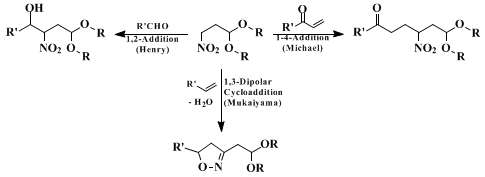

Examples for the use of acetals such as 3, of 3-nitropropanal (1), and of 3-nitropropanol (2) or its O-protected derivatives are given in the references.42 43 44,45 46 47 48 49,50 51 52 53 A recent, notable application from this group is a short, high-yield synthesis of L-acosamine,54 the arabino isomer of 3-amino-2,3,6-trideoxyhexoses that form part of many antitumor aminoglycoside antibiotics.55

References and Notes
  1. Institut für Organische Chemie und Isotopenforschung der Universität Stuttgart, Pfaffenwaldring 55, D-70569 Stuttgart.
  2. For related examples Miyakoshi T.; Saito, S.; Kumanotani, J. Chem. Lett. 1981, 1677; 1982, 83.
  3. Öhrlein, R.; Schwab, W.; Ehrler, R.; Jäger, V. Synthesis 1986, 535.
  4. Öhrlein, R.; Jäger, V. Tetrahedron Lett. 1988, 29, 6083.
  5. Nikolaeva, A. D.; Ziyatdinov, R. N.; Karimov, R. G. Ref. Zh. Khim 1976, 20; U.S.S.R. Pat. 408545 [Chem. Abstr. 1976, 84, 104998g].
  6. Barco, A.; Benetti, S.; De Risi, C.; Pollini, G. P.; Spalluto, G.; Zanirato, V. Tetrahedron Lett. 1993, 34, 3907.
  7. Prostaglandins: Corey, E. J.; Vlattas, I.; Andersen, N. H.; Harding, K. J. Am. Chem. Soc. 1968, 90, 3247;
  8. Thienamycin: Kametani, T.; Huang, S.-P.; Ihara, M. Heterocycles 1979, 12, 1183, 1189;
  9. (±)-Milbemycin β3: Smith, A. B., III; Schow, S. R.; Bloom, J. D.; Thompson, A. S.; Winzenberg, K. N. J. Am. Chem. Soc. 1982, 104, 4015;
  10. Crumbie, R. L.; Nimitz, J. S.; Mosher, H. S. J. Org. Chem. 1982, 47, 4040.
  11. Büchi, G.; Wüest, H. J. Org. Chem. 1969, 34, 1122.
  12. Gelbard, G.; Colonna, S. Synthesis 1977, 113.
  13. Henry, L. C. R. Hebd. Acad. Sci. 1895, 120, 1265;
  14. Henry, L. Bl. Acad. Belgique 1896, [3], 33, 117. See also ref. 43.
  15. Kim, H. K.; Bambury, R. E.; Yaktin, H. K. J. Med. Chem. 1971, 14, 301.
  16. Neue Datenblätter für gefährliche Arbeitsstoffe nach der Gefahrstoffverordnung, Welzacher U. (Ed.); WEKA Fachverläge: Landsberg, 1991.
  17. Chem Cards, Internationale Sicherheitsdatenblätter für gefährliche Stoffe, Niederländischer Verband der Sicherheitsfachkräffe; ecomed: Landsberg, 1996.
  18. Nielsen, A. T. In "The Chemistry of the Nitro and Nitroso Groups"; Feuer, H., Ed.; Wiley: New York, 1969, Pt. 1, pp. 349-486;
  19. von Schickh, O.; Apel, G.; Padeken, H. G.; Schwarz, H. H.; Segnitz, A. In "Methoden der Organischen Chemie (Houben-Weyl)", 4th ed.; Müller, E., Ed.; Georg Thieme: Stuttgart, 1971; Vol. X. Part 1, pp. 1-462;
  20. Torssell, K. B. G. "Nitrile Oxides, Nitrones, and Nitronates in Organic Synthesis: Novel Strategies in Synthesis"; VCH: New York, 1987;
  21. Behnisch, R.; Behnisch, P.; Mattmer; R. In "Methoden der Organischen Chemie (Houben-Weyl)", 4th ed.; Klamann, D., Ed.; Georg Thieme: Stuttgart, 1992; Vol. E 16d, Part 1, pp. 142-254.
  22. Baer, H. H. Adv. Carbohydr. Chem. Biochem. 1969, 24, 67;
  23. Seebach, D.; Colvin, E. W.; Lehr, F.; Weller, T. Chimia, 1979, 33, 1;
  24. Wade, P. A.; Giuliano, R. M. Nitro Compd. 1990, 137-265;
  25. Rosini, G.; Ballini, R. Synthesis 1988, 833.
  26. Jäger, V.; Poggendorf, P. Org. Synth., Coll. Vol. IX 1998, 636
  27. Seebach, D. Angew. Chem. 1979, 91, 259; Angew. Chem., Int. Ed. Engl. 1979, 18, 239; Seebach, D.; Beck, A. K., Mukhopadhyay, T.; Thomas, E. Helv. Chim. Acta 1982, 65, 1101.
  28. Stetter, H. In "Methoden der Organischen Chemie (Houben-Weyl)", 4th ed.; Müller, E., Ed.; Georg Thieme: Stuttgart, 1973; Vol. 7/2a, p. 802, 843ff;
  29. Eicher, T.; Pielartzik, H. In "Methoden der Organischen Chemie (Houben-Weyl)", 4th ed.; Falbe, J., Ed.; Georg Thieme: Stuttgart, New York 1983; Vol. E3, pp. 395ff;
  30. Mc Murry, J. E. Acc. Chem. Res. 1974, 7, 281.
  31. Mukaiyama, T.; Hoshino, T. J. Am. Chem. Soc. 1960, 82, 5339.
  32. Grundmann, C.; Grünanger, P. In "The Nitrile Oxides: Versatile Tools of Theoretical and Preparative Chemistry"; Springer-Verlag: Berlin; 1971;
  33. Jäger, V.; Grund, H.; Buß, V.; Schwab, W.; Müller, I.; Schohe, R.; Franz, R.; Ehrler, R. Bull. Soc. Chim. Belg. 1983, 92, 1039;
  34. Lang, S. A.; Jr., Lin, Y.-i. In "Comprehensive Heterocyclic Chemistry"; Katritzky, A. R.; Rees, C. W., Eds. Vol. 6, Pergamon Press, Oxford, 1984, 2;
  35. Caramella, P.; Grünanger, P. In "1,3-Dipolar-Cycloaddition Chemistry"; Padwa, A., Ed., Vol. 1, Wiley-Interscience, New York, 1984, 291;
  36. Kozikowski, A. P. Acc. Chem. Res. 1984, 17, 410;
  37. Jäger, V.; Müller, I.; Schohe, R.; Frey, M.; Ehrler, R.; Häfele, B.; Schröter, D. Lect. Heterocycl. Chem. 1985, 8, 79;
  38. Curran, D. P. Adv. Cycloadd. 1988, 1, 129.
  39. Jäger, V.; Grund, H. Angew. Chem. 1976, 88, 27; Angew. Chem., Int. Ed. Engl. 1976, 15, 50;
  40. Jäger, V.; Schohe, R. Tetrahedron 1984, 40, 2199;
  41. Jäger, V.; Müller, I. Tetrahedron 1985, 41, 3519.
  42. Uses of 3-nitropropanal in synthesis: (a) Nitroalkane building blocks: Ono, N.; Katayama, H.; Nisyiyama, S.; Ogawa, T. J. Heterocycl. Chem. 1994, 31, 707;
  43. Tropane alkaloids: Bunce, R. A.; Parker, J. T. Synth. Commun. 1992, 22, 377;
  44. 15N-Labeled ion-pair comonomers: Watterson, A. C.; Parkeenvincha, E.; Salamone, J. C. Polym. Prepr. (Am. Chem. Soc., Div. Polychem.) 1990, 31, 492.
  45. Uses of 3-nitropropanol in synthesis: (a) N-Hydroxyalkyl nitronates: See ref. 15;
  46. Use in glycosidations: Baer, H. H.; Chiu, S.-H.; Shields, D. C. Can. J. Chem. 1973, 51, 2828;
  47. Carbopenam and carbopenam antibiotics via 1,3-dipolar cycloaddition: Kametani, T.; Nakayama, A.; Nakayama, Y.; Ikuta, T.; Kubo, R.; Goto, E.; Honda, T; Fukumoto, K. Heterocycles 1981, 16, 53;
  48. 3-Nitropropyl ethers in synthesis of 3-deoxy-D,L-ristosamine: Schwab, W. Dissertation, Universitat Gießen, 1981; cf. Jäger, V.; Franz, R.; Schwab, W.; Häfele, B.; Schröter, D.; Schäfer, D.; Hümmer, W.; Guntrum, E.; Seidel, B. Stud. Org. Chem. 1988, 58-75;
  49. 3-Nitropropylgentiobiosides and 3-nitropropylcellobiosides: Long, M.; Benn, M.; Majak, W.; McDiarmid, R. Phytochemistry 1992, 31, 321.
  50. Uses of 3-nitropropanal acetals in synthesis: (a) For syntheses of prostaglandins, see ref. 7; cf. Nowitzki, O.; Münnich, I.; Stucke, H.; Hoffmann, H. M. R. Tetrahedron 1996, 52, 11799;
  51. Thienamycin: Kametani, T.; Nagahara, T.; Ihara, M. J. Chem. Soc., Perkin Trans. I 1981, 3048; Ihara, M.; Konno, F.; Fukumoto, K.; Kametani, T. Heterocycles 1983, 20, 2181 (see also ref. 8);
  52. Nitroalkane building blocks: Keana, J. F. W.; Little, G. M. Heterocycles 1983, 20, 1291; Ono, N.; Fujii, M.; Kaji, A. Synthesis 1987, 532; patent, Sumitomo Chemical Co., Ltd., Jpn. Kokai Tokkyo Koho, 5 pp, JP 58216144 A2 [Chem. Abstr. 1984, 100, 156241y];
  53. Heterocyclic 5-HPETE analogues: Le Gall, T.; Darganzanli, G.; Grée, R.; Millet, J.; Sepulchre, C.; Bellamy, F. Bioorg. Med. Chem. Lett. 1994, 4, 253.
  54. Menzel, A.; Öhrlein, R.; Griesser, H.; Jäger, V. Synthesis, in press; review: Jäger, V.; Öhrlein, R.; Wehner, V.; Poggendorf, P.; Steuer, B.; Raczko, J.; Griesser, H.; Kiess, F.-M.; Menzel, A. Enantiomer 1999, in press.
  55. Hauser, F. M.; Ellenberger, S. R. Chem. Rev. 1986, 86, 35.

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

3-Nitropropanal:
Propanal, 3-nitro- (9); (58657-26-4)

3-Nitropropanol:
1-Propanol, 3-nitro- (8,9); (25182-84-7)

3-Nitropropanal dimethyl acetal:
Propane, 1,1-dimethoxy-3-nitro- (10); (72447-81-5)

Sodium nitrite:
Nitrous acid sodium salt (8,9); (7632-00-0)

Acrolein (8):
2-Propenal (9); (107-02-8)

Sodium borohydride;
sodium tetrahydroborate:
Borate(1−), tetrahydro-, sodium (8,9); (16940-66-2)

Methyl orange:
Benzenesulfonic acid, p-[[p-(dimethylamino)phenyl]azo]-, sodium salt (8);
Benzenesulfonic acid, 4-[[4-(dimethylamino)phenyl]azo]-, sodium salt (9); (547-58-0)

Trimethyl orthoformate:
Orthoformic acid, trimethyl ester (8);
Methane, trimethoxy- (9); (149-73-5)

p-Toluenesulfonic acid monohydrate (8);
Benzenesulfonic acid, 4-methyl-, monohydrate (9); (6192-52-5)

3-Nitropropanal diethyl acetal:
Propane, 1,1-diethoxy-3-nitro- (12); (107833-73-8)

Triethyl orthoformate:
Orthoformic acid, triethyl ester (8);
Ethane, 1,1',1"-[methylidynetris(oxy)]tris- (9); (122-51-0)
