PHOTO-INDUCED RING EXPANSION OF 1-TRIISOPROPYLSILYLOXY-1-AZIDOCYCLOHEXANE: PREPARATION OF ε-CAPROLACTAM
[ 2H-Azepin-2-one, hexahydro- from Silane, [(1-azidocyclohexyl)oxy]tris(1-methylethyl)- ]
Submitted by Jade D. Nelson, Dilip P. Modi, and P. Andrew Evans1 .
Checked by Patrick Foyle, Peter Belica, and Steven Wolff.
1. Procedure

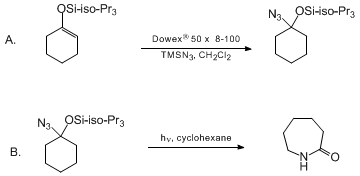

A. 1-Triisopropylsilyloxy-1-azidocyclohexane : A 2-L, two-necked, round-bottomed flask is equipped with a magnetic stirrer, argon inlet, and a rubber septum (Note 1). The flask is charged with freshly-distilled 1-triisopropylsilyloxycyclohexene (25.47 g, 100 mmol, Note 2) and anhydrous dichloromethane (1.0 L, Note 3). Azidotrimethylsilane (68.5 mL, 500 mmol, Note 4) is added via syringe, immediately followed by anhydrous Dowex® 50 × 8-100 (24.98 g, Note 5) in a single portion from a dry flask. The suspension is stirred vigorously at ambient temperature for ca. 48 hr (Note 6). The reaction mixture is filtered to recover the Dowex® resin and solvent is removed under reduced pressure to afford a clear, colorless oil. The crude oil is applied to a 5 × 13-cm column of silica gel (120 g, 230-400 mesh packed with hexanes). The column is quickly eluted with hexanes (750 mL) and fractions are collected in 25-mL test tubes (Note 7). The fractions containing the desired product are identified by thin layer chromatography, combined, and concentrated under reduced pressure to afford the 1-triisopropylsilyloxy-1-azidocyclohexane (26.75 g, 90%) as a colorless oil (Note 8).
B. ε-Caprolactam : The reaction apparatus (see Fig. 1, Note 9) is charged with 1-triisopropylsilyloxy-1-azidocyclohexane (25.9 g, 87.1 mmol) and cyclohexane (435 mL, Note 10). The clear, colorless solution is purged with nitrogen for a 15 min period to exclude oxygen. The solution is cooled to ca. 0°C and irradiated (≥200 nm) for 3.5 hr (Note 11). The solvent is removed under reduced pressure to afford a pale yellow oil. The crude oil is dissolved in dichloromethane (ca. 10 mL) and applied to a 6 × 6-cm column of silica gel (88 g, 230-400 mesh packed with 1 : 1 ethyl acetate/hexanes). An additional 1 cm of silica gel is added to the top of the column and the mixture is stirred with a glass rod to homogenize the layer, rinsed with eluent, and the column is repacked. The column is eluted with 1 : 1 ethyl acetate/hexanes (200 mL, Note 12), then with 1 : 9 methanol/ethyl acetate (500 mL), and fractions are collected in 25-mL test tubes. The fractions containing the desired product are identified by thin layer chromatography (Note 13), combined, and concentrated under reduced pressure to afford ε-caprolactam (8.20 g, 83%, Note 14) as an off-white solid.
2. Notes
1. The assembled glassware was flame-dried under high vacuum, then cooled to ambient temperature under a positive pressure of dry argon.
2. The following procedure was used to prepare 1-triisopropylsilyloxycyclohexene . A 500-mL, three-necked, round-bottomed flask was charged with 9.81 g (0.10 mol) of cyclohexanone , 180 mL of dry dichloromethane (anhydrous grade from Aldrich Chemical Company, Inc.), and 20.9 mL (0.15 mol) of triethylamine . The mixture was cooled to −20° and a solution of 32.25 mL of triisopropylsilyl trifluoromethanesulfonate 2 in 20 mL of dichloromethane was added dropwise, while maintaining the temperature of the reaction below 5°C. After completion of the addition, the reaction mixture was stirred at 0-5°C for 1 hr, then at ambient temperature for 2 hr. The reaction mixture was washed with 80 mL of brine, then dried with magnesium sulfate . After filtration to remove the drying agent, the filtrate was concentrated under vacuum to yield a residue consisting of two phases. The residue was diluted with 200 mL of hexanes, washed with 50 mL of brine, dried with magnesium sulfate , and filtered. The filtrate was concentrated under vacuum to give 28.37 g of a pale yellow oil. Distillation afforded 24.97 g of a colorless oil, bp 75-85°C (0.2-0.3 torr, 0.15-0.23 mm). The NMR spectrum of this material indicated the possible presence of cyclohexanone . Redistillation gave 20.25 g (78%) of 1-triisopropylsilyloxycyclohexene as a colorless oil, bp 85-90°C (0.3 torr, 0.23 mm).
3. Dichloromethane was distilled from calcium hydride under an atmosphere of nitrogen immediately prior to use.
4. The azidotrimethylsilane was purchased from Acros Organics and used without further purification.
5. Dowex® 50X8-100 was purchased from Acros Organics and dried in the following manner. Approximately 50 g of the commercially available resin is washed with anhydrous methanol (3 × 50 mL), then with anhydrous ethyl ether (2 × 50 mL) in a Buchner funnel. The granular solid is dried under high vacuum for ca. 24 hr.
6. The progress of the reaction is monitored by thin layer chromatography, eluting with hexanes, then dried quickly with a stream of nitrogen and eluted a second time with hexanes (product Rf = 0.75, visualized and developed using UV light and KMnO4, respectively). The checkers found that the reaction was not complete after 72 hr. Stirring was continued until TLC analysis indicated the absence of the enol ether (5-6 days).
7. Discoloration of the column is often observed, which may be due to hydrazoic acid formation upon hydrolysis of the azidotrimethylsilane .
8. The product exhibits the following spectroscopic and analytical properties: IR (neat) cm−1: 2948, 2892, 2865, 2104 ; 1H NMR (250 MHz, C6D6) δ: 1.04-1.18 (m, 21 H), 1.26-1.57 (m, 8 H), 1.66-1.76 (m, 2 H) ; 13C NMR (62.5 MHz, C6D6) δ: 13.56, 18.45, 23.4, 25.16, 38.50, 91.57 ; HRMS (EI) calcd for C11H24N3OSi 254.1689 found 254.1674 . Anal. calcd. for C15H31N3OSi: C, 60.56; H, 10.50; N, 14.12 Found: C, 60.51; H, 10.76; N, 14.04.

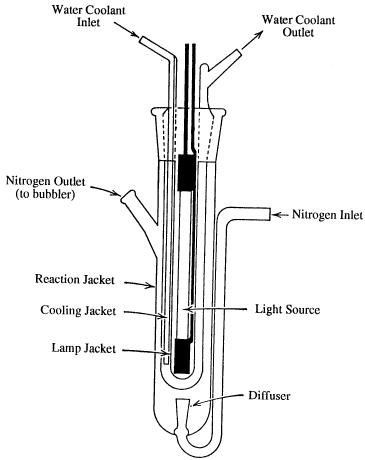

9. The reaction apparatus (Figure 1) requires a tubular quartz flask with two side arms and a large ground-glass joint at the top to accommodate the water-cooled UV lamp. One of the side arms is fitted with a Teflon® tube, the second side arm is fitted with a rubber septum and wide-bore needle, which has a Teflon® tube leading to a nitrogen bubbler. A vigorous stream of nitrogen is allowed to flow into the flask through the Teflon® tube to agitate the solution during irradiation. The entire apparatus is placed inside a vacuum-jacketed Dewar flask filled with ice to maintain the reaction temperature at ca. 0°C.
10. Cyclohexane was purchased from Acros Organics and used without further purification.
11. The UV lamp generates a great deal of heat, and thus it is necessary to interrupt the reaction ca. every hour to remove water from the Dewar and replenish it with ice.
12. The triisopropylsilanol side-product is eluted first through the column. Alternatively, the bulk of this material may be removed via distillation under reduced pressure (50-60°C at 2-3 mmg).
13. The progress of the reaction is monitored by thin layer chromatography, eluting with ethyl acetate (product Rf = 0.06, visualized and developed using UV light and KMnO4, respectively).
14. The product exhibits the following spectroscopic and analytical properties: mp 68-69°C; lit.3 68-70°C; IR (CHCl3) cm−1: 3420, 3293, 3224, 3019, 2937, 2859, 1660 ; 1H NMR (250 MHz, C6D6) δ: 1.14-1.33 (m, 6 H), 2.21-2.25 (m, 2 H), 2.68-2.74 (m, 2 H), 8.33 (bs, 1 H) ; HRMS (EI) calcd for C6H11NO: 113.0841; found: 113.0833 .
