Org. Synth. 1938, 18, 75
DOI: 10.15227/orgsyn.018.0075
PROTOCATECHUALDEHYDE
Submitted by Johannes S. Buck and F. J. Zimmermann.
Checked by Reynold C. Fuson and W. E. Ross.
1. Procedure

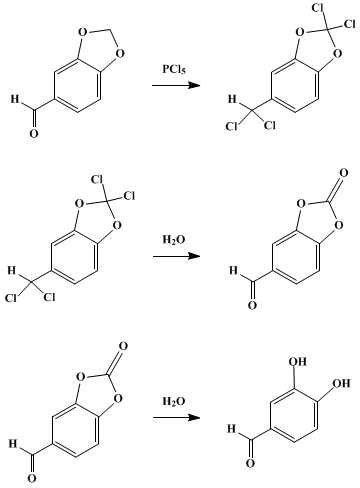

To 108 g. (0.72 mole) of piperonal in a 3-l. round-bottomed flask is added, in portions of 20 to 30 g., 454 g. (2.18 moles) of fresh phosphorus pentachloride. The reaction is vigorous at first, and the flask is kept cold with ice; moisture must be excluded. After about half of the pentachloride has been added the reaction becomes sluggish and cooling is unnecessary. The entire addition requires about thirty minutes. The resulting green or blue liquid containing undissolved pentachloride is heated very gently over a flame for about sixty minutes to expel hydrogen chloride. From the turbid, light brown liquid thus formed, volatile material is removed on a steam bath under the reduced pressure of a water pump. This operation takes about thirty minutes. The contents of the flask are then poured into 5 l. of cold water contained in a 12-l. round-bottomed flask (Note 1). A milky oil is formed which rises and sinks in the water and, after about thirty minutes, becomes solid. After standing overnight, the mixture is boiled gently for three hours. The brown solution, containing a little tar, is cleared with charcoal and evaporated under reduced pressure to about 700 cc., when the aldehyde begins to separate. The solution is allowed to stand overnight at about 0°; a large crop of crystals separates, is collected on a filter, and washed with a little water. The product is purified by recrystallization from three times its weight of water. It melts at 153–154°, with decomposition, and weighs 61 g. (61 per cent of the theoretical amount).
2. Notes
1. This must be done cautiously because the residual phosphorus pentachloride reacts vigorously with water.
3. Discussion
Protocatechualdehyde has been made by a variety of methods, but is usually prepared from catechol by the Reimer-Tiemann method;1 from vanillin2 or veratric aldehyde3 by demethylation; and from piperonal by the action of aluminum chloride4 or phosphorus pentachloride followed by hydrolysis.5

References and Notes
  1. Reimer and Tiemann, Ber. 9, 1268 (1876); Tiemann and Koppe, ibid. 14, 2015 (1881).
  2. Tiemann and Haarmann, ibid. 7, 620 (1874).
  3. Dreyfus, Ger. pat. 193,958 [Frdl. 9, 161 (1908–10)].
  4. Givaudan-Delawanna, Inc., U. S. pat. 2,027,148 [C. A. 30, 1395 (1936)].
  5. Fittig and Remsen, Ann. 159, 144 (1871); Pauly, Ber. 40, 3096 (1907); Barger, J. Chem. Soc. 93, 563 (1908); Hoering and Baum, Ber. 41, 1914 (1908).

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

hydrogen chloride (7647-01-0)

phosphorus pentachloride (10026-13-8)

aluminum chloride (3495-54-3)

Catechol (120-80-9)

veratric aldehyde (120-14-9)

vanillin (121-33-5)

piperonal (120-57-0)

PROTOCATECHUALDEHYDE (139-85-5)
