Org. Synth. 1948, 28, 87
DOI: 10.15227/orgsyn.028.0087
1-PHENYL-3-AMINO-5-PYRAZOLONE
[5-Pyrazolone, 3-amino-1-phenyl-]
Submitted by H. D. Porter and A. Weissberger.
Checked by R. T. Arnold and K. Murai.
1. Procedure

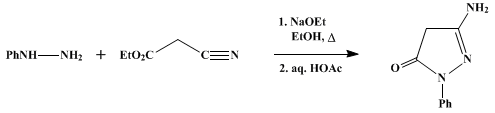

Sodium ethoxide is prepared from 46 g. (2 gram atoms) (Note 1) of sodium and 800 ml. of absolute ethanol in a 2-l. three-necked flask equipped with stirrer and a reflux condenser. To the hot solution is added 113 g. (106 ml., 1 mole) of ethyl cyanoacetate followed by 108 g. (98 ml., 1 mole) of phenylhydrazine (Note 2), and the mixture is stirred and heated in an oil bath at 120° for 16 hours. Then most of the ethanol is removed under reduced pressure and the residue is dissolved in 1 l. of water; the mixture is warmed to about 50° and stirred to facilitate solution. After being cooled to room temperature, the solution is extracted with three 100-ml. portions of ether (Note 3). The aqueous phase is acidified by the addition of 100 ml. of glacial acetic acid, cooled in ice, and filtered. The crude product is washed on the filter with 100 ml. of 95% ethanol; it is then transferred to a flask and boiled with 500 ml. of the same solvent, and this mixture is cooled and filtered. The solid is washed with ethanol and dried. The tan crystalline 1-phenyl-3-amino-5-pyrazolone, melting with decomposition at 216–218°, weighs 76–82 g. (43–47%) (Note 4).
2. Notes
1.
At least two equivalents of
sodium ethoxide are necessary for the reaction, but larger amounts do not improve the yield.
Sodium hydroxide in
ethanol, or
sodamide in
benzene, cannot be substituted for the
sodium ethoxide solution.
2.
All the chemicals used were obtained from the Eastman Kodak Company.
3.
Instead of the isolation of the product by concentration, solution in water, and extraction with
ether, water may be added directly to the ethanolic solution and the resulting solution acidified. This procedure, however, often leads to a more highly colored product.
4.
This material is sufficiently pure for most purposes. If desired, an almost white product may be obtained by two recrystallizations from
dioxane (Norit). This treatment entails a 40% loss of the product and raises the melting point by only 2° (to
218–220°).
3. Discussion
The procedure is essentially that given by Conrad and Zart for the original preparation of the substance,
1 to which they assigned the incorrect structure of
1-phenyl-3-hydroxy-5-pyrazolone imide.
2 The compound may also be prepared in about the same yield by the reaction of
phenylhydrazine with
ethyl malonate monoimidoester.
3
The procedure given has been applied with varying success to a number of aromatic and heterocyclic hydrazines.
4
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
ethyl malonate monoimidoester
ethanol (64-17-5)
acetic acid (64-19-7)
Benzene (71-43-2)
ether (60-29-7)
sodium hydroxide (1310-73-2)
Phenylhydrazine (100-63-0)
sodium (13966-32-0)
sodium ethoxide (141-52-6)
Ethyl cyanoacetate (105-56-6)
dioxane (123-91-1)
sodamide (7782-92-5)
1-Phenyl-3-amino-5-pyrazolone,
5-Pyrazolone, 3-amino-1-phenyl- (4149-06-8)
1-phenyl-3-hydroxy-5-pyrazolone imide
