Org. Synth. 1957, 37, 20
DOI: 10.15227/orgsyn.037.0020
[Malonic acid, benzoyl-, diethyl ester]
Submitted by John A. Price and D. S. Tarbell1.
Checked by T. L. Cairns and C. L. Dickinson.

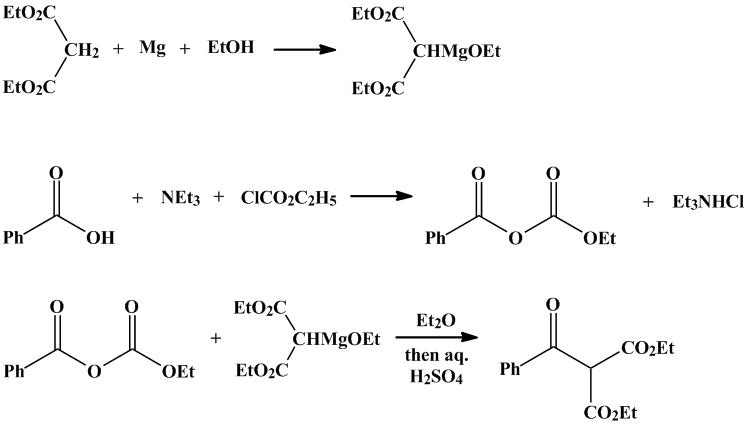

1. Procedure
A. Ethoxymagnesiummalonic ester (Note 1). In a 250-ml. three-necked flask equipped with a dropping funnel and an efficient reflux condenser fitted with a calcium chloride drying tube are placed 5.0 g. (0.2 g. atom) of magnesium turnings (Grignard), 5 ml. of absolute alcohol (Note 2), 0.2 ml. of carbon tetrachloride, and 6 ml. of a mixture of 32.0 g. (30.2 ml., 0.2 mole) of diethyl malonate (Note 3) and 16 ml. of absolute alcohol. The reaction will proceed in a few minutes and may require occasional cooling before the addition of the remainder of the diethyl malonate solution. The addition should be controlled so that the reaction goes at a fairly vigorous rate. When the reaction mixture has cooled to room temperature, 60 ml. of ether dried over sodium wire is cautiously (Note 4) added. When the reaction again appears to subside, gentle heating by means of a steam bath is begun and continued until nearly all the magnesium has disappeared (Note 5). The alcohol and ether are removed by distillation, first at atmospheric pressure and then at reduced pressure secured with a water pump. To the partially crystalline product is added 60 ml. of dry benzene, and the solvent is again removed by distillation at atmospheric and then reduced pressure (Note 6). The residue is dissolved in 60 ml. of dry ether to await the completion of the mixed carbonic-carboxylic anhydride preparation.
B. Mixed benzoic-carbonic anhydride (Note 7). In a 500-ml. three-necked flask, equipped with a low-temperature thermometer, an efficient sealed stirrer, and an adaptive joint carrying a drying tube and a dropping funnel, is placed a solution of 24.4 g. (0.2 mole) of benzoic acid (Note 8) and 20.2 g. (0.2 mole) of triethylamine (Note 9) in 200 ml. of dry toluene. The solution is cooled below 0° by means of an ice-salt mixture, and 21.7 g. (0.2 mole) of ethyl chlorocarbonate (Note 10) is added at such a rate that the temperature does not rise above 0° (approximate time for addition is 25–30 minutes). Triethylamine hydrochloride precipitates both during the addition and while the mixture is stirred for 15–25 minutes thereafter.
C. Diethyl benzoylmalonate. The dropping funnel used for the chlorocarbonate addition is replaced by another into which the ethereal solution of the ethoxymagnesium compound has been transferred. Approximately 30 ml. of dry ether is used to rinse the flask, and this is also added to the dropping funnel. The ether solution is added to the mixed anhydride with stirring, as the temperature is held at −5° to 0°. After the mixture has been allowed to stand overnight and to come to room temperature during this time, it is treated cautiously with 400 ml. of 5% sulfuric acid; then the aqueous solution is separated and extracted once with ether. The two organic layers are combined, washed once with dilute sulfuric acid and then with a concentrated sodium bicarbonate solution until no further benzoic acid is obtained from acidification of the bicarbonate extracts (Note 11). The organic layer is washed with water and dried over anhydrous sodium sulfate. After removal of the sodium sulfate by filtration, the solvent is removed at water-pump pressure from a water bath held at about 50°. The resulting product is purified by distillation through a 30-cm. Vigreux column, and the fraction boiling at 144–149°/0.8 mm. is collected (Note 12). The yield is 35.8–39.4 g. (68–75%), n25D 1.5063–1.5066.
2. Notes
1. The described procedure is essentially the same as that reported by Lund and Voigt.2 A similar preparation has been described by Reynolds and Hauser (p. 708).
2. A commercial grade is satisfactory for this preparation.
3. Commercial malonic ester was redistilled at reduced pressure to give material with nD20 1.4047.
4. The ether dissolves the crystalline cake which has formed on cooling. This releases unreacted material and vigorous reaction again sets in.
5. From 6 to 8 hours is required for this operation.
6. The benzene removes any residual alcohol which may interfere with the subsequent acylation.3
7. The mixed carbonic anhydride procedure4,5,6 has been useful in the preparation of amide linkages and thiol esters. Mixed carbonic anhydrides have successfully acylated, under very mild conditions, the carbanions derived from diethyl ethylmalonate and diethylcadmium.7 The latter gives as a product the corresponding ketone. Mixed anhydrides derived from acetic and acetylsalicylic acids give results similar to those described here.7
8. A good reagent grade of benzoic acid is satisfactory.
9. Redistillation of a commercial grade gave material boiling at 87.0–87.2°.
10. Redistillation of a commercial grade gave material boiling at 90.8–92.0°.
11. If the benzoic acid is not all removed at this stage, it is troublesome during the final distillation.
12. The fore-run, if giving a positive test with ferric chloride reagent, may be redistilled to give increased yields.
3. Discussion
Diethyl benzoylmalonate has been prepared by treatment of the copper derivative of ethyl benzoylacetate with ethyl chlorocarbonate.8 It has also been obtained by the action of benzoyl chloride on the magnesium derivative of diethyl malonate,9 and on a mixture of malonic ester and sodium methoxide10,11 or sodium.12,13 This compound has been found to be obtainable in higher yield by the reaction of benzoyl chloride and the ethoxymagnesium derivative.14 The present method has been described in a previous communication and is of interest as an illustration of the use of mixed carbonic anhydrides as acylating agents.7
This preparation is referenced from:

References and Notes
  1. University of Rochester, Rochester, New York.
  2. Org. Syntheses Coll. Vol. 2, 594 (1943).
  3. Riegel and Lilienfeld, J. Am. Chem. Soc., 67, 1273 (1945).
  4. Vaughan, J. Am. Chem. Soc., 73, 3547 (1951).
  5. Boissonnas, Helv. Chim. Acta, 34, 874 (1951).
  6. Wieland and Bernhard, Ann., 572, 190 (1951).
  7. Tarbell and Price, J. Org. Chem., 21, 144 (1956); 22, 245 (1957).
  8. Bernhard, Ann., 282, 165 (1894).
  9. Gagnon, Boivin, and Laflamme, Can. J. Chem., 34, 530 (1956).
  10. Claisen and Falk, Ann., 291, 72 (1896).
  11. Bülow and Hailer, Ber., 35, 934 (1902).
  12. King, King, and Thompson, J. Chem. Soc., 1948, 552.
  13. Borsche and Wannagat, Ber., 85, 193 (1952).
  14. Lund, Ber., 67, 935 (1934).

Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

Ethoxymagnesiummalonic ester

benzoic-carbonic anhydride

copper derivative of ethyl benzoylacetate

magnesium derivative of diethyl malonate

alcohol (64-17-5)

sulfuric acid (7664-93-9)

Benzene (71-43-2)

ether (60-29-7)

sodium bicarbonate (144-55-8)

magnesium turnings (7439-95-4)

sodium sulfate (7757-82-6)

carbon tetrachloride (56-23-5)

Benzoic acid (65-85-0)

sodium methoxide (124-41-4)

benzoyl chloride (98-88-4)

toluene (108-88-3)

sodium wire (13966-32-0)

ferric chloride (7705-08-0)

diethyl malonate (105-53-3)

Diethyl benzoylmalonate,
Malonic acid, benzoyl-, diethyl ester (1087-97-4)

Triethylamine hydrochloride (554-68-7)

diethyl ethylmalonate (133-13-1)


ethyl chlorocarbonate (541-41-3)

triethylamine (121-44-8)
