Org. Synth. 1952, 32, 81
DOI: 10.15227/orgsyn.032.0081
METHYL p-ACETYLBENZOATE
[Benzoic acid, p-acetyl-, methyl ester]
Submitted by William S. Emerson and George F. Deebel
1.
Checked by Arthur C. Cope and Warren N. Baxter.
1. Procedure

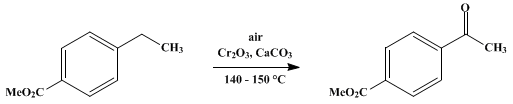

A 200-ml. three-necked flask is equipped with a thermometer, a mechanical stirrer, a gas inlet tube extending as far into the flask as the stirrer permits, and a trap (designed to return the heavier layer of the condensate) (Note 1) which is attached to a bulb and a coil-type reflux condenser connected in series. Methyl p-ethylbenzoate (98 g., 0.6 mole) (Note 2) and a mixture of 1 g. of chromium oxide and 4 g. of calcium carbonate, prepared by grinding the solids together in a mortar, are added. An air line with a bleed control valve (Note 3) is connected from the top of the condenser to a water aspirator. The flask is heated with a hemispherical electric mantle (Note 4).
The mixture is stirred vigorously at a temperature of 140–150°, and air is drawn through it (Note 5). for 24 hours while the water formed is collected in the trap (Note 6). At the end of this period, the mixture is cooled, diluted with 100 ml. of benzene (Note 7), and filtered with suction to remove the catalyst (Note 8). The catalyst is washed with 10 ml. of benzene on the funnel, and the washings are combined with the filtrate. The benzene is distilled from the clear, yellow solution (conveniently at a pressure of 100 mm. or lower to avoid superheating and partial decomposition of the product) through a fractionating column (Note 9). After removal of the benzene, the pressure is reduced and the residue is fractionally distilled. There is obtained 29–32 g. of unreacted methyl p-ethylbenzoate (b.p. 118–121°/16 mm.), and 43–45 g. (40–42% conversion and 60% yield) of methyl p-acetylbenzoate; b.p. 149–150°/7 mm. (Note 10) and (Note 11). The high-boiling residue weighs 13–18 g. The crude methyl p-acetylbenzoate can be purified by crystallization from the minimum amount of 1:1 benzene-commercial hexane required for solution with a recovery of 82–85%, collected in two crops; m.p. 92–95°.
2. Notes
1.
A
Dean and Stark trap2 modified to provide for continuous return of the heavier organic layer is most convenient. Such a trap can be constructed like a
small Wehrli extractor.
3
2.
Methyl p-ethylbenzoate was prepared from
ethylbenzene (1 kg.), which was converted to
p-ethylacetophenone by adding
aluminum chloride (792 g.), followed by
acetyl chloride (462 g.), which was added with stirring at 0–5° over a period of 3 hours. The mixture was stirred for 1 hour longer, allowed to stand overnight, and washed with iced dilute
hydrochloric acid. The
ethylbenzene was removed by distillation, and the crude product was oxidized to
p-ethylbenzoic acid with alkaline hypochlorite.
4 Recrystallization of the crude acid from
95% ethanol yielded
350 g. (
41%) of the pure acid; m.p.
110–112°. Esterification with
methanol in the presence of
hydrogen chloride4 yielded
methyl p-ethylbenzoate (
77–79%).
3.
A T-tube in the connection between the top of the condenser and the water aspirator is attached to a
Bunsen burner. The needle valve of the burner serves as a bleed control valve, regulating the amount of air drawn through the reaction mixture.
4.
An
oil bath can be used.
5.
The air stream should be introduced as rapidly as possible, preferably at a rate which will just permit return of the liquid from the coil condenser. It is equally satisfactory to force air through the mixture from a cylinder or compressed-air line if the air is clean and free from oil. Use of a rapid stream of air and vigorous stirring prevents the catalyst from settling.
6.
Removal of the water should be as complete as possible, in order to prevent coagulation of the catalyst, which retards the oxidation.
7.
The
benzene serves to keep the
methyl p-acetylbenzoate in solution. If crystallization occurs, the mixture should be warmed to dissolve the ester before filtration.
8.
The catalyst should be removed completely, because distillation of the product in the presence of small amounts of the catalyst results in some decomposition with a corresponding lowering of the yield. Use of a filter aid such as Super-Cel aids in separating the catalyst.
9.
The submitters used a
120-cm. Vigreux column in distilling the
benzene and a
60-cm. Vigreux column in fractionating the product. The checkers used a
Widmer column with a 17-cm. spiral for the entire distillation.
10.
Cooling water should not be circulated through the condenser during distillation of the product, because the
methyl p-acetylbenzoate tends to crystallize in the condenser.
11.
The submitters have obtained similar yields (
40–54% conversion and
60–66% yield) in oxidations on 10 times this scale.
3. Discussion
Methyl p-acetylbenzoate has been prepared by the esterification of
p-acetylbenzoic acid with
methanol in the presence of
hydrogen chloride,
5 by the hydrogenation of
methyl p-trichloroacetylbenzoate in the presence of a
palladium on calcium carbonate catalyst,
6 and by the air oxidation of
methyl p-ethylbenzoate.
4
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
benzene-commercial hexane
ethanol (64-17-5)
hydrogen chloride,
hydrochloric acid (7647-01-0)
Benzene (71-43-2)
methanol (67-56-1)
acetyl chloride (75-36-5)
calcium carbonate (471-34-1)
aluminum chloride (3495-54-3)
palladium (7440-05-3)
ethylbenzene (100-41-4)
chromium oxide (1308-38-9)
Methyl p-acetylbenzoate,
Benzoic acid, p-acetyl-, methyl ester (3609-53-8)
Methyl p-ethylbenzoate (7364-20-7)
p-ethylacetophenone (937-30-4)
p-ethylbenzoic acid (619-64-7)
p-acetylbenzoic acid (586-89-0)
methyl p-trichloroacetylbenzoate
