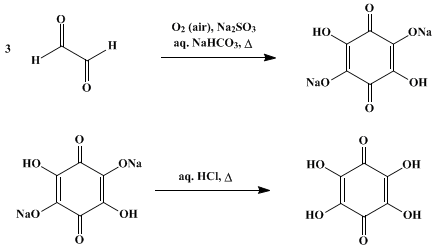

A 5-l., three-necked round-bottomed flask is fitted with a thermometer, an air-inlet tube of 10-mm. diameter extending to within approximately 1 cm. of the bottom, and an outlet tube connected to an aspirator (Note 1). A solution of 400 g. (3.17 moles) of anhydrous sodium sulfite and 150 g. (1.79 moles) of anhydrous sodium bicarbonate (Note 2) in 3 l. of water is heated to 40–45° in the flask. Six hundred grams (480 ml., 3.11 moles) of 30% glyoxal solution (Note 3) is added, and a brisk stream of air is drawn through the solution for 1 hour without application of heat. Within a few minutes, greenish black crystals of the sodium salt of tetrahydroxyquinone begin to separate. The flask is warmed to between 80° and 90° over a period of an hour. The air current is then stopped, and the mixture is heated to incipient boiling and set aside for 30 minutes. It is then cooled to 50° (Note 4), and the sodium salt of tetrahydroxyquinone is separated by filtration and washed successively with 50 ml. of cold 15% sodium chloride solution, 50 ml. of cold 1:1 methanol-water, and 50 ml. of methanol. The air-dried salt weighs 20–21 g.

The salt is added to 250 ml. of 2N hydrochloric acid, and the mixture is heated to incipient boiling. The resultant solution is cooled in an ice bath, and the glistening black crystals of tetrahydroxyquinone that precipitate are collected on a Büchner funnel and washed with ice water to give 11–15 g. (6.2–8.4%) of product. The quinone fails to melt on a hot plate at 320° (Note 5).
