Org. Synth. 1984, 62, 165
DOI: 10.15227/orgsyn.062.0165

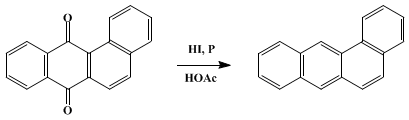

REDUCTION OF QUINONES WITH HYDRIODIC ACID: BENZ[a]ANTHRACENE
Submitted by Maria Konieczny and Ronald G. Harvey1.
Checked by Gregory A. Reed and Carl R. Johnson.
1. Procedure
Caution! Benzene has been identified as a carcinogen; OSHA has issued emergency standards on its use. All procedures involving benzene should be carried out in a well-ventilated hood, and glove protection is required. Benz[a]anthracene is also a known carcinogen.
A 500-mL, one-necked, round-bottomed flask is equipped with a magnetic stirring bar and an efficient condenser, and charged with 10.3 g (0.04 mol) of benz[a]anthracene-7,12-dione (Note 1), 5 g (0.16 mol) of red phosphorus (Note 2), and 100 mL of glacial acetic acid. The stirred suspension is heated to reflux, and 60 mL of 56% hydriodic acid (ca. 0.44 mol) (Note 3) is introduced through the condenser. The suspension is heated at reflux for 24 hr. The hot reaction mixture is poured into 500 mL of distilled water containing ~30 g of sodium bisulfite. The suspension is stirred for 16 hr and filtered. The dry filter cake is transferred to a beaker and treated with sufficient hot dichloromethane (~120 mL) to dissolve all of the benz[a]anthracene, and the mixture is filtered once again to remove the residual phosphorus. The volume of the filtrate is reduced to 40 mL. The solution is adsorbed on basic alumina, activity I (Note 4). A 2-cm × 40-cm chromatography column is slurry-packed with ca. 10 g of basic alumina and the benz[a]anthracene adsorbed on alumina is added to the top of the column. Elution with 5% benzene in hexane (occasional rinsing of the column tip with benzene to remove crystallized product may be necessary) and evaporation of the solvent in a rotary evaporator affords 7.7–7.9 g (84–87%) of pure, white benz[a]anthracene, mp 159.5–160°C (Note 5).
2. Notes
1. Benz[a]anthracene-7,12-dione, 12-dione, available from Eastman Organic Chemicals, was used without further purification.
2. Phosphorus, which serves to scavenge the I2 produced, can be omitted. However, the product tends to retain traces of a yellow impurity that is difficult to remove.
3. The hydriodic acid employed was a 56% aqueous solution preserved with ~0.8% hypophosphorous acid obtained from Fisher Scientific Co. Once a bottle is opened, the contents tend to deteriorate, becoming dark-colored in less than 2 days. However, shelf life can be extended indefinitely if the container is purged with dry nitrogen before resealing.
4. Alumina sufficient to adsorb the complete solution is added, then the solvent is removed under vacuum. While benz[a]anthracene, mp 157–158°C, sufficiently pure for most purposes, can be obtained by crystallization of the crude product from ethanol-water, "filtration" through alumina removes residual, colored impurities, affording a pure, white product.
5. Pure benz[a]anthracene has been reported to melt at 158–159°,2 160°,3 and 167°C.4 The submitters report a melting point of 164–164.5°C. The submitters conducted this preparation on a scale five times larger and reported yields of up to 95%.
3. Discussion
The synthetic procedure described is based on that reported earlier for the synthesis on a smaller scale of anthracene, benz[a]anthracene, chrysene, dibenz[a, c]anthracene, and phenanthrene5 in excellent yields from the corresponding quinones.6 Although reduction of quinones with HI and phosphorus was described in the older literature, relatively drastic conditions were employed and mixtures of polyhydrogenated derivatives were the principal products.7 The relatively milder experimental procedure employed herein appears generally applicable to the reduction of both ortho- and para-quinones directly to the fully aromatic polycyclic arenes. The method is apparently inapplicable to quinones having an olefinic bond, such as o-naphthoquinone, since an analogous reaction of the latter provides a product of undetermined structure (unpublished result). As shown previously,6 phenols and hydroquinones, implicated as intermediates in the reduction of quinones by HI, can also be smoothly deoxygenated to fully aromatic polycyclic arenes under conditions similar to those described herein.
Although previous experience indicates that phosphorus is not essential for these reductions,6,8 purification of the product is more difficult with its omission. With hydrocarbons sensitive to further reduction, phosphorus can have a deleterious effect through promotion of hydrogenation of the desired product. Whether or not phosphorus should be employed in an individual case will be dictated by experience with the particular compound and by the degree of purity required.
While the reduction of polycyclic quinones to phenols, hydroquinones, dihydrodiols, dihydro arenes, and arenes by a variety of reagents has been described, no entirely satisfactory general method is currently available for reduction directly to the fully aromatic arenes. Reagents previously employed for this purpose include LiAlH4,9,10 NaBH4,11 12 13 NaBH4-BF3,11,14 diborane,14 aluminum and cyclohexanol,15 zinc dust distillation,16 and diphenylsilane.17 These methods commonly furnish lower yields and are less general than the present procedure.

References and Notes
  1. The Ben May Institute, The University of Chicago, 5841 S. Maryland Ave., Hospital Box 24, Chicago, IL 60637.
  2. Clar, E. "Polycyclic Hydrocarbons," Vol. 1, Academic Press: New York, 1964, p. 311.
  3. Fieser, L. F.; Hershberg, E. B. J. Am. Chem. Soc. 1937, 59, 2502.
  4. I. G. Farbenind, A.-G. Ger. Patent 481819, 1925; 486766, 1925; Chem. Abstr. 1930, 24, 2139, 1390.
  5. Reduction of phenanthrene-9,10-dione with HI in acetic acid afforded 9-hydroxyphenanthrene as sole product, while an analogous reaction without acetic acid furnished phenanthrene essentially quantitatively.
  6. Konieczny, M.; Harvey, R. G. J. Org. Chem. 1979, 44, 4813.
  7. According to Clar, "the reduction of quinones with hydriodic acid and red phosphorus at 200°C yields mostly hydrogenated hydrocarbons. These can be dehydrogenated by sublimation over copper at 400°C"; see reference 2, p. 171.
  8. Konieczny, M.; Harvey, R. G. J. Org. Chem. 1980, 45, 1308.
  9. Davies, W.; Porter, Q. N. J. Chem. Soc. 1957, 4967.
  10. Harvey, R. G.; Goh, S. H.; Cortez, C. J. Am. Chem. Soc. 1975, 97, 3468; Harvey, R. G.; Fu, P. P. In "Polycyclic Hydrocarbons and Cancer: Environment, Chemistry, and Metabolism," Gelboin, H. V.; Ts'o, P. O. P., Eds.; Academic Press: New York, 1978; Vol. I, Chapter 6, p. 133.
  11. Rerick, M. In "Reduction," Augustine, R. L.; Ed.; Marcel Dekker; New York, 1968; p. 39;
  12. Criswell, T. R.; Klanderman, B. H. J. Org. Chem. 1974, 39, 770;
  13. Cho, H.; Harvey, R. G. J. Chem. Soc., Perkin Trans. 1 1976, 836.
  14. Bapat, D. S.; Subba Rao, B. C.; Unni, M. K.; Venkataraman, K. Tetrahedron Lett. 1960, 15.
  15. Coffey, S.; Boyd, V. J. Chem. Soc. 1954, 2468.
  16. Reference 2, p. 161.
  17. Gilman, H.; Diehl, J. J. Org. Chem. 1961, 26, 4817.

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

red phosphorus

alumina

Benz[a]anthracene-7,12-dione, 12-dione

hypophosphorous acid

quinones

o-naphthoquinone

NaBH4-BF3

acetic acid (64-19-7)

Benzene (71-43-2)

Cyclohexanol (108-93-0)

PHOSPHORUS (7723-14-0)

nitrogen (7727-37-9)

aluminum (7429-90-5)

sodium bisulfite (7631-90-5)

zinc (7440-66-6)

hydriodic acid (10034-85-2)

anthracene (120-12-7)

dichloromethane (75-09-2)

phenanthrene (85-01-8)

LiAlH4 (16853-85-3)

Benz[a]anthracene (56-55-3)

hexane (110-54-3)

NaBH4 (16940-66-2)

chrysene (218-01-9)

diphenylsilane (775-12-2)

benz[a]anthracene-7,12-dione (2498-66-0)

dibenz[a, c]anthracene (215-58-7)
