Org. Synth. 2006, 83, 55
DOI: 10.15227/orgsyn.083.0055
AU(I)-CATALYZED HYDRATION OF ALKYNES: 2,8-NONANEDIONE
Submitted by Eiichiro Mizushima,1 Dong-Mei Cui,1 Dilip Chandra Deb Nath,1 Teruyuki Hayashi,*1,2a and Masato Tanaka.1,2b
Checked by Rick L. Danheiser and Tin Yiu Lam.
Discussion Addendum: Org. Synth. 2012, 89, 126
1. Procedure3
2,8-Nonanedione. A 250-mL, three-necked, round-bottomed flask fitted with a rubber septum, a glass stopper, a reflux condenser equipped with an argon inlet, and a magnetic stirbar is evacuated and filled with argon, and then charged with 1,8-nonadiyne (6.3 mL, 5.0 g, 42 mmol, 1 equiv) (Note 1), methyl(triphenylphosphine)gold4 (CH3AuPPh3) (0.042 g, 0.088 mmol, 0.2 mol%) (Note 2), sulfuric acid (prepared by diluting 2.08 g (21.2 mmol, 0.5 equiv) of concentrated H2SO4 with 21 mL of water) (Note 3), and methanol (120 mL) (Note 4). The mixture is heated and stirred at reflux (oil bath temperature 70–75 °C) for 2 h, at which time analysis by gas chromatography (Note 5) shows that the conversion of 1,8-nonadiyne is complete. The reaction mixture is allowed to cool to room temperature and then transferred to a 250-mL, round-bottomed flask and most of the methanol is removed by rotary evaporation (30–40 °C, 20 mmHg). The resulting viscous, colorless, and cloudy oil (about 20 mL) is diluted with water (70 mL) and diethyl ether (50 mL). The mixture is stirred for 5 min and then the aqueous layer is separated and extracted with ether (3 × 50 mL). The combined ether layers are washed with saturated NaHCO3 solution (50 mL) and saturated NaCl solution (50 mL), dried over anhydrous magnesium sulfate, filtered, and concentrated by rotary evaporation (20 °C, 20 mmHg) to give 5.80 g of a colorless solid. This material is dissolved in boiling pentane (about 30 mL) in a 50-mL Erlenmeyer flask heated on a hot plate and the solution is cooled to 0 °C. The resulting solid is collected by vacuum filtration on a Büchner funnel, washed with ice-cold pentane (10 mL), and then dried at 20 mmHg to afford 5.57 g (86%) of 2,8-nonanedione as colorless crystals (Note 6).
2. Notes
1. 1,8-Nonadiyne (98% purity) was purchased by the submitters from Acros Organics and used as received. The checkers obtained the diyne (98% purity) from Aldrich Chemical Co.
2. Methyl(triphenylphosphine)gold(I) was prepared as follows according to the procedure of ref. 4. A 100-mL, two-necked, round-bottomed flask equipped with a rubber septum, a reflux condenser fitted with an argon inlet, and a magnetic stirbar was evacuated and filled with argon. Chloro(triphenylphosphine)gold(I) (Strem Chemicals, 98+% purity) (0.5 g, 1.0 mmol, 1 equiv) and 6 mL of diethyl ether (purified by pressure filtration through activated alumina) were added and the resulting colorless suspension was cooled to 0 °C. Methylmagnesium iodide solution (3 M in diethyl ether, Aldrich Chemical Co.) (1.7 mL, 5.1 mmol, 5.1 equiv) was added dropwise via syringe over 10 min. The resulting mixture was heated at reflux (oil bath temperature 50–55 °C) for 1 h and then allowed to cool to room temperature. Ice-cold 0.5% H2SO4 solution (24 mL, degassed by argon purging for 30 min before use) was added, resulting in the formation of a purple precipitate. Diethyl ether (3 mL, purified by pressure filtration through activated alumina) was added and the resulting mixture of two liquid phases and the precipitate was vacuum filtered through a Büchner funnel (washing with three 10-mL portions of toluene that had been purified by pressure filtration through activated alumina). The combined filtrates were transferred to a separatory funnel and the layers were separated. The organic phase was washed with 50 mL of water, dried over anhydrous Na2SO4, filtered, and concentrated to a volume of about 10 mL. This solution was transferred to a 50-mL Erlenmeyer flask, diluted with 30 mL of hexane (degassed by purging with argon for 30 min prior to use), and then slowly cooled to −18 °C. The resulting crystals were collected on a Büchner funnel by vacuum filtration (washing with ca. 15 mL of ice-cold hexane) and air-dried to give 0.248 g (52%) of methyl(triphenyl-phosphine)gold(I) as colorless crystals. The product exhibits the following physical properties: mp: 164–167 °C (lit.4 167–168 °C); 1H NMR pdf (300 MHz, CDCl3) δ: 0.55 (d, J PH = 7.8 Hz, 3 H), 7.43–7.58 (m, 15 H); 31P NMR (121 MHz, CDCl3) δ: 47.6; Anal. Calcd for C19H18AuP: C, 48.12; H, 3.83; Found: C, 48.11; H, 3.51.
3. Concentrated sulfuric acid was obtained by the checkers from Mallinckrodt Chemicals and was diluted with deionized water. The aqueous acid was degassed by purging with argon for 30 min prior to use.
4. Methanol was purchased by the submitters from Wako Pure Chemical Industries, Ltd. and used as received. The checkers obtained anhydrous methanol from Mallinckrodt Chemicals. The methanol was degassed by purging with argon for 30 min prior to use.
5. The submitters employed a Shimadzu GC-17A gas chromatograph equipped with a capillary column of Ultra Alloy UA1-30 M-0.25F with a stationary phase of poly(dimethylsiloxane) using the following conditions: initial temperature at 50 °C, then increased at a rate of 10 °C/min, and held at 250 °C for 30 min. The checkers used a HP 6890 Series GC system equipped with a capillary column HP-5 with 5% phenyl dimethylpolysiloxane as the stationary phase under the following conditions: initial temperature 50 °C, then increased at a rate of 10 °C/min, and held at 240 °C for 30 min. Retention time of 1,8-nonadiyne: 4.37 min.
6. The product has the following characteristics: mp 47–48 °C (lit.5 47–48 °C); 1H NMR pdf (500 MHz, CDCl3) δ: 1.22–1.28 (m, 2 H), 1.54 (apparent quintet, J = 7.5 Hz, 4 H), 2.10 (s, 6 H), 2.40 (t, J = 7.5 Hz, 4 H); 13C NMR (125 MHz, CDCl3) δ: 23.6, 28.7, 30.1, 43.5, 209.1; IR (KBr): 2936, 2866, 1716, 1702, 1464, 1408, 1378, 1360, 1230, 1163, 958 cm−1; Anal. Calcd for C9H16O2: C, 69.19; H, 10.32. Found: C, 68.92; H, 10.56.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
2,8-Nonanedione is a useful synthetic intermediate for the synthesis of rootworm sex pheromones, among other applications. The methods for the synthesis of 2,8-nonanedione have been recently summarized by Keinan and coworkers6 as follows: (1) mercury-catalyzed hydration of 1,8-nonadiyne,7 (2) palladium-catalyzed Wacker oxidation of 1,8-nonadiene,8 (3) reaction of 1,5-pentylene biscadmium halide with acetyl chloride,9 (4) oxidative cleavage of 2-methylcycloheptanone,5 and (5) reaction of bromohexanone ketal and acetoacetate.6 Other synthetic routes include (6) alkylation of acetone dimethylhydrazone followed by hydrolysis,10 (7) condensation of an alkoxyalkyl phenyl sulfone and a dihalopentane,11 (8) imidazolylation of pimelonamide followed by alkylation and elimination,12 and (9) alkylation of a phosphonium salt of pimeloyl chloride followed by hydrolysis.13

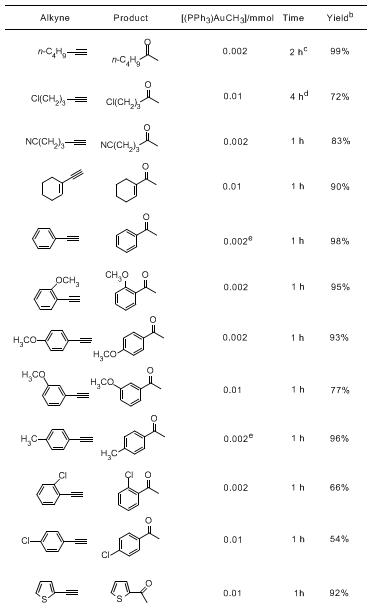

Table 1 Preparation of Various Methyl Ketones a
Table 1. Protection of thiols

a) Catalyst [(Ph3P)AuCH3], alkyne 1 mmol, water 0.5 mL, H2SO4 0.5 mmol, methanol 1-3 mL, 70 °C. b) Yields by GC c) 60 °C. d) Under CO atmosphere. e) CF3SO3H instead of H2SO4.

However, reactions (3) - (9) are multi-step procedures that give massive salt waste. Wacker oxidation (2) is principally the best reaction, while the oxidation of 1,8-nonadiene8 itself is not selective.
On the other hand, acid-catalyzed hydration of alkynes to give carbonyl compounds is one of the most straightforward methods to form the carbon-oxygen bond and is long known.14 However, only electron-rich alkynes react satisfactorily. The reaction of simple alkynes is sluggish and requires a co-catalyst such as mercury(II) salts6,15 as in reaction (1). To avoid the use of toxic mercury(II) salts, the use of various transition metal complexes such as Ru(II),16 Ru(III),17 Rh(III),18 Pt(II),19 and Au(III)20 have been examined. However, the efficiencies of these catalyst systems have remained insufficient and the highest turnover frequency is in the 100/h range. Recently, Teles and coworkers21 have claimed in a patent application that hydration of propargyl alcohol is catalyzed by an Au(I)-acid catalyst system. However, the efficiency is still low.
We have discovered that simple alkynes can be hydrated by the CH3AuPPh3-acid catalyst system to give the corresponding methyl ketones in high yields.3 The reaction is significantly affected by the reaction media and methanol is the best solvent. Turnover frequency increases in methanol to 15600/h.22
The reaction is applied not only to simple alkynes and diynes, but also to various alkynes as shown in Table 1. Aliphatic terminal alkynes give corresponding methyl ketones in good yields, even when electron withdrawing substituents such as chloro and cyano groups are attached. The use of CO atmosphere is required in some cases. Though C=C and C≡N groups can be potentially hydrated or hydrolyzed, both groups remain intact in the presence of this CH3AuPPh3-acid catalyst system. Aromatic alkynes give the corresponding acetophenones in high yields, while the use of CF3SO3H instead of H2SO4 is required in some cases. The presence of electronegative o- and p-chloro- and m-methoxy-substituents results in lower yields. The present catalyst CH3AuPPh3 is also applicable to hydroamination of alkynes.23 The present catalyst CH3AuPPh3 is also applicable to hydroamination for alkynes.23 A timely review on recent explosive progress in gold catalysis has appeared.24

References and Notes
  1. National Institute of Advanced Industrial Science and Technology.
  2. Present affiliation: (a) Department of Chemistry, The University of Tokyo; (b) Tokyo Institute of Technology.
  3. A less detailed procedure has been published: Mizushima, E.; Sato, K.; Hayashi, T.; Tanaka, M. Angew. Chem. Int. Ed., 2002, 41, 4563.
  4. Tamaki, A.; Kochi, J. K. J. Organomet. Chem., 1973, 61, 441.
  5. Nishinaga, A.; Rindo, K.; Matsuura, T. Synthesis, 1986, 1038.
  6. Keinan, E.; Sinha, S. C.; Sinha-Bagchi, A. J. Org. Chem., 1992, 57, 3631.
  7. Vo-Quang, Y. Ann. Chim. (Paris), 1962, 7, 785.
  8. Zahalka, H. A.; Januszkiewicz, K.; Alper, H. J. Mol. Catal., 1986, 35, 249.
  9. Soussan, G; Freon, P. Bull. Soc. Chim. Fr., 1972, 4228.
  10. Yamashita, M.; Matsumiya, K.; Morimoto, H., Suemitsu, R. Bull. Chem. Soc. Jpn., 1989, 62, 1668.
  11. Tanaka, T.; Matsui, S., Kaji, A. Bull. Chem. Soc. Jpn., 1980, 53, 3619.
  12. Hayakawa, S.; Baba, J.; Okamoto, M.; Ohta, S. Chem. Pharm. Bull., 1988, 36, 22.
  13. Maeda, H.; Hino, N.; Yamauchi, Y.; Ohmori, H. Chem. Pharm. Bull., 2000, 48, 1196.
  14. Smith, M. B.; March, J. Advanced Organic Chemistry, 5th ed., Wiley: New York, 2001, p. 995.
  15. Jäger, V.; Viehe, H. G. in Houben-Weyl, Methoden der Organischen Chemie, Vol. 5/2a, Ed.: Müller, E., Thieme Verlag: Stuttgart, 1977, p. 726.
  16. Tokunaga, M; Wakatsuki, Y. Angew. Chem. Int. Ed., 1998, 37, 2867.
  17. Halpern, J.; James, B. R.; Kemp, A. L. W. J. Am. Chem. Soc., 1961, 83, 4097.
  18. James, B. R.; Rempel, G. L. J. Am. Chem. Soc., 1969, 91, 863.
  19. Francisco, L. W.; Moreno, D. A.; Atwood, J. D., Organometallics, 2001, 20, 4237.
  20. Fukuda, Y.; Utimoto, K. J. Org. Chem., 1991, 56, 3729.
  21. Schulz, M.; Teles, J. H. U. S. Patent 6,037,482 for BASF, Mar. 14, 2000.
  22. Reaction conditions: 1-octyne 20 mmol, CH3AuPPh3 0.001 mmol, CF3SO3H 0.5 mmol, H2O 1 mL, methanol 10 mL, 70 °C, 1 h, under CO atmosphere.
  23. Mizushima, E.; Hayashi, T.; Tanaka, M. Org. Lett., 2003, 5, 3349.
  24. Stephen, A.; Hashmi, K.; Hutchings, G. J. Angew. Chem. Int. Ed., 2006, 45, 7896.

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

Methyl(triphenylphosphine)gold (CH3AuPPh3); (23108-72-7)

1,8-Nonadiyne; (2396-65-8)

2,8-Nonanedione; (30502-73-9)
