PREPARATION OF A CARBAZOLE-BASED MACROCYCLE VIA PRECIPITATION-DRIVEN ALKYNE METATHESIS
Submitted by Wei Zhang, Hyeon Mo Cho, and Jeffrey S. Moore1.
Checked by Scott E. Denmark and Christopher R. Butler.
Discussion Addendum: Org. Synth. 2018, 95, 231
1. Procedure

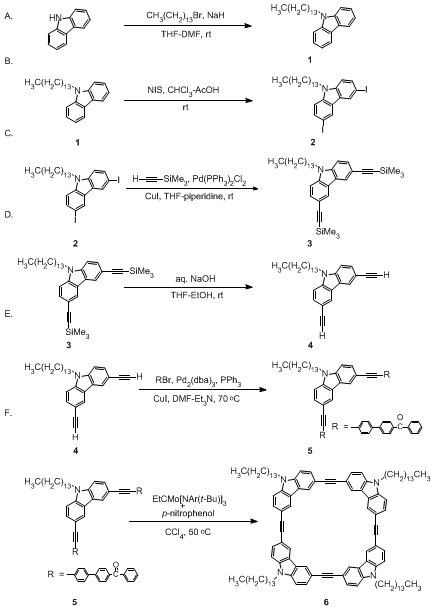

A. 9-Tetradecylcarbazole (1). A single-necked 500-mL, round-bottomed, side-armed flask (Note 1) equipped with a glass stopper and a magnetic stirring bar is connected to a nitrogen-vacuum manifold. After evacuating and backfilling with nitrogen three times, the flask (with stopper removed), in which a positive flow of nitrogen is maintained throughout the entire procedure, is sequentially charged with carbazole (12.5 g, 0.072 mol) (Note 2), 1-bromotetradecane (24.3 mL, 0.079 mol) (Note 3), THF (60 mL) and DMF (20 mL) (Note 4). To the stirred solution, NaH (60% in oil, 4.32 g, 0.11 mol) (Note 3) is added to the solution in small portions within 20 min, avoiding vigorous bubbling and heating. The flask is capped with a glass stopper and the resulting suspension is stirred for 2 h at room temperature under nitrogen. Methanol (30 mL) is slowly added to the reaction mixture within 5 min to quench the remaining NaH. The solution is transferred to a 1-L, round-bottomed flask and then is concentrated by rotary evaporation (15–20 mmHg, water bath temperature 50–55 °C) to afford a solid residue, which is extracted with CH2Cl2 (3 × 100 mL). The combined organic layers are sequentially washed with 2 N aq HCl (2 × 100 mL), H2O (2 × 100 mL), then are dried (Na2SO4) and concentrated by rotary evaporation. The crude product is purified by column chromatography [silica gel, 80 × 250 mm, hexanes] to afford carbazole 1 as a white solid (25.8 g, 98%) (Note 5).
B. 3,6-Diiodo-9-tetradecylcarbazole (2). A 500-mL, one-necked, round-bottomed flask equipped with a magnetic stirring bar is sequentially charged with carbazole 1 (14.5 g, 0.040 mol), N-iodosuccinimide (19.1 g, 0.081 mol) (Note 6), CHCl3 (280 mL) and acetic acid (100 mL). The flask is capped with a nitrogen inlet adapter and wrapped in aluminum foil. The reaction mixture is stirred under nitrogen for 16 h at room temperature. Chloroform and acetic acid are removed by rotary evaporation. A pink precipitate forms upon pouring water (450 mL) into the residue and then transferring the slurry into a 1-L Erlenmeyer flask containing more water (200 mL). The solids are collected by filtration, air dried and dissolved in CHCl3 (300 mL). The organic solution is sequentially washed with saturated Na2S2O3 (3 × 70 mL), brine (2 × 100 mL), dried (Na2SO4), filtered and concentrated by rotary evaporation (15–20 mmHg, water bath temperature 30–35 °C). Iodinated carbazole 2 is obtained as a white solid (23.8 g, 97%) and used without further purification (Note 7).
C. 3,6-Bis[(trimethylsilyl)ethynyl]-9-tetradecylcarbazole (3). A 500-mL single-necked round-bottomed, side-arm flask equipped with a glass stopper and a magnetic stirring bar is connected to a nitrogen-vacuum manifold. After evacuating and backfilling with nitrogen three times, the flask, in which a positive flow of nitrogen is maintained throughout the procedure, is sequentially charged with iodinated carbazole 2 (23.7 g, 0.038 mol), CuI (0.147 g, 0.77 mmol) (Note 3), Pd(PPh3)2Cl2 (1.35 g, 1.9 mmol) (Note 3), THF (90 mL), and piperidine (55 mL) (Note 3). The flask is cooled in an ambient temperature water bath before 1-trimethylsilylacetylene (45.7 mL, 0.38 mol) (Note 8) is added in two portions over 5 min (Note 9). The reaction mixture is then stirred for 23 h at room temperature. The solution changes from green to yellow with the formation of a white precipitate, and then the suspension changes to green and then black. The reaction mixture is then filtered through a coarse fritted funnel into a 1-L, one-necked, round-bottomed flask and is concentrated by rotary evaporation (15–20 mmHg, water bath temperature 40–45 °C). The crude product is purified by column chromatography [silica gel, 80 × 250 mm, hexanes 1 L, then hexanes/EtOAc 50/1 (2 L), then hexanes/EtOAc, 20/1 (1 L)] to afford diyne-substituted carbazole 3 as a yellow oil (19.9 g, 93%) (Note 10).
D. 3,6-Diethynyl-9-tetradecylcarbazole (4). A 1-L, one-necked, round-bottomed flask equipped with a magnetic stirring bar is sequentially charged with diyne substituted carbazole 3 (19.5 g, 0.035 mol), THF (100 mL) and ethanol (400 mL). As the resulting solution is stirred, a solution of NaOH (4.21 g, 0.11 mol) in H2O (30 mL) is added slowly over 5 min. The solution is stirred under nitrogen at room temperature for an additional 2 h during which time the solution changes from orange to red. The solvent is removed by rotary evaporation (water bath temperature 45–50 °C) to afford a residue, which is partitioned between CH2Cl2 (450 mL) and H2O (100 mL) in a 1-L separatory funnel. The separated organic layer is washed with H2O (2 × 100 mL) and brine (2 × 100 mL), and then is dried (Na2SO4), filtered and concentrated by rotary evaporation (20–25 mmHg, water bath temperature 30–35 °C). Diyne-substituted carbazole 4 is obtained as a yellow-red oil that becomes a tan solid upon standing (14.0 g, 97%) and is used without further purification (Notes 11, 12).
E. 3,6-Bis(benzoylbiphenyl)ethynyl-9-tetradecylcarbazole (5). A 500-mL, single-necked round-bottomed, side-arm flask equipped with a Teflon thermometer adapter and a magnetic stirring bar is connected to a nitrogen-vacuum manifold. The flask is flame-dried under vacuum, then filled with nitrogen. After evacuating and backfilling with nitrogen three times, the flask, in which a positive flow of nitrogen is maintained throughout the entire procedure, is sequentially charged with CuI (0.058 g, 0.31 mmol) (Note 3), Pd2(dba)3 (1.68 g, 1.8 mmol) (Note 13), PPh3 (3.21 g, 12 mmol) (Note 13) and 4-benzoyl-4'-bromobiphenyl (21.7 g, 0.064 mol) (Note 14). The flask containing the solid mixture is evacuated and backfilled with nitrogen three times. Under a nitrogen purge, triethylamine (70 mL) (Note 3, Note 4) and a solution of diyne-substituted carbazole 4 (12.6 g, 0.031 mol) in DMF (150 mL) (Note 4) are sequentially added. Oxygen is removed from the mixture by three freeze-pump-thaw cycles. The reaction mixture is then stirred for 16 h at 70 °C (internal temperature). The solution changes from yellow to a dark purple. When the reaction mixture cools to room temperature, yellow precipitates are observed. The mixture is transferred to a 1-L, single-necked, round-bottomed flask with the aid of dichloromethane washes (2 × 250 mL). Dichloromethane and Et3N are removed by rotary evaporation (15–20 mmHg, water bath temperature 40–45 °C) and DMF is removed under high vacuum by using a short-path distillation apparatus (0.50–1.0 mmHg, air bath temperature 45–55 °C) (Note 15). Dichloromethane (400 mL) is added and the organic layer is washed with saturated aq. NH4Cl solution (2 × 200 mL), brine (2 × 200 mL) and then was dried (Na2SO4) and filtered. Dichloromethane is removed by rotary evaporation and the residual solid is treated with methanol (200 mL), resulting in the formation of a yellow solid. The solid bisarylethynyl-substituted carbazole 5 is collected by filtration, then is washed with methanol (3 × 50 mL), dried in vacuo (26.9 g, 95%) and used without further purification (Notes 16, 17).
F. Carbazole-based tetrakismacrocycle (6). A 400-mL Schlenk tube equipped with a magnetic stirring bar and a glass stopper is introduced to a glove box. The flask is sequentially charged with 4-nitrophenol (0.680 g, 4.89 mmol) (Note 3), trisamidomolybdenum(VI) propylidyne (1.09 g, 1.63 mmol) (Note 18) and CCl4 (150 mL) (Note 4). The resulting solution is stirred for 4 min and the solution changes from light yellow to orange (Note 19). A solution of monomer 5 (15.1 g, 16.3 mmol) in CCl4 (200 mL) (Notes 20, 21) is added to the stirred catalyst solution. The flask is sealed with grease and electrical tape and is removed from the glove box. The resulting mixture is stirred at 50 °C (Note 22) for 24 h during which time a light-yellow precipitate forms and the color of the reaction mixture changes from yellow to brown. The mixture is transferred to a 1-L Erlenmeyer flask, along with CH2Cl2 (200 mL). The solids are removed by suction filtration through a medium-porosity fritted-glass funnel and are washed with CH2Cl2 (2 × 50 mL). The filtrate is concentrated by rotary evaporation (20–25 mmHg, water bath temperature 40–45 °C). Methanol (200 mL) is added to the residue and the resulting suspension is filtered, washed with methanol (3 × 75 mL) and dried in vacuo. The crude product is further purified by silica gel column chromatography (Note 3) [silica gel, 44 × 572 mm, CHCl3/CH2Cl2, 3/1 to 1/1] to afford macrocyclic product 6 as a pale-yellow solid (3.80 g, 61%) (Notes 23, 24).
2. Notes
1. All glassware was oven-dried at 140 °C overnight.
2. Carbazole (96%) was purchased from Acros and used as received.
3. 1-Bromotetradecane (97%), sodium hydride (60% dispersion in mineral oil), CuI (99.999%), Pd(PPh3)2Cl2 (98%), piperidine (redistilled, 99.5+%), triethylamine (99.5%), p-nitrophenol (≥ 99%) and grade 62 silica gel with pore size of 150 Å were purchased from the Aldrich Chemical Company, Inc. and used as received unless further purification is indicated.
4. THF and DMF were dried by standing over 4 Å molecular sieves over night before use. Carbon tetrachloride was distilled over P2O5 and stored over 3 Å molecular sieves.
5. A small portion of compound 1 was further purified by recrystallization from ethanol to afford analytically pure material. The analytical data from compound 1 were as follows: mp 42–44 °C; TLC: Rf = 0.22 (hexanes); 1H NMR pdf (CDCl3, 500 MHz) δ: 0.87 (t, J = 7.4 Hz, 3 H), 1.23–1.40 (m, 22 H), 1.87 (tt, J = 7.3 and 7.3 Hz, 2 H), 4.30 (t, J = 7.3 Hz, 2 H), 7.22 (dt, J = 7.8 and 0.9 Hz, 2 H), 7.40–7.48 (m, 4 H), 8.10 (d, J = 7.8 Hz, 2 H); 13C NMR (CDCl3, 125 MHz) δ: 14.1, 22.7, 27.3, 28.9, 29.3, 29.4, 29.47, 29.54, 29.57, 29.62, 29.64, 31.9, 43.0, 108.6, 118.6, 120.3, 122.8, 125.5, 140.4. IR (KBr): 3048, 2947, 2919, 2869, 2848, 2341, 2360, 1628, 1600, 1485, 1465, 1453, 1371, 1351, 1328, 1235, 1153, 1122 cm−1; LRMS (EI): m/z 363.3, 180.1. Anal. Calcd for C26H37NO: C, 85.89; H, 10.26; N, 3.85. Found: C, 86.12; H, 10.66; N, 4.03. The spectroscopic data were in agreement with those previously reported.2
6. N-Iodosuccinimide (95%) was purchased from the Aldrich Chemical Company, Inc. and used as received.
7. The analytical data from compound 2 were as follows: mp 79–80 °C; 1H NMR pdf (CDCl3, 500 MHz) δ: 0.88 (t, J = 7.1 Hz, 3 H), 1.22–1.30 (m, 22 H), 1.81 (tt, J = 7.1 and 7.1 Hz, 2 H), 4.21 (t, J = 7.4 Hz, 2 H), 7.16 (d, J = 8.6 Hz, 2 H), 7.70 (dd, J = 8.6 and 1.7 Hz, 2 H), 8.32 (d, J = 1.5 Hz, 2 H); 13C NMR (CDCl3, 125 MHz) δ: 14.1, 22.7, 27.2, 28.8, 29.31, 29.35, 29.35, 29.42, 29.51, 29.56, 29.61, 29.63, 29.65, 31.9, 43.2, 81.6, 110.9, 124.0, 129.3, 134.5, 139.5; IR (KBr): 3062, 2921, 2847 1585, 1466, 1428, 1374, 1348, 1312, 1290, 1236, 1216, 1152, 1047, 1014 cm−1; LRMS (EI): m/z 615.1, 431.9, 208.1. These spectroscopic data were in agreement with those previously reported.2
8. 1-Trimethylsilylacetylene (98+%) was purchased from GFS Chemicals and used as received.
9. Upon addition of 1-trimethylsilylacetylene, a significant exotherm (15 °C) was observed, and stirring became difficult as the piperidine hydroiodide was formed.
10. The analytical data from compound 3 were as follows: TLC Rf = 0.32 (n-hexane/EtOAc, 20/1); 1H NMR pdf (CDCl3, 500 MHz) δ: 0.28 (s, 18 H), 0.87 (t, J = 7.1 Hz, 3 H), 1.22–1.31 (m, 22 H), 1.83 (p, J = 7.1 Hz, 2 H), 4.25 (t, J = 7.2 Hz, 2 H), 7.29 (d, J = 8.1 Hz, 2 H), 7.56 (dd, J = 8.5 and 1.6 Hz, 2 H), 8.19 (d, J = 1.0 Hz, 2 H); 13C NMR (CDCl3, 125 MHz) δ: 0.15, 14.1, 22.7, 27.2, 28.9, 29.32, 29.34, 29.45, 29.51, 29.57, 29.61, 29.63, 29.65, 31.9, 43.3, 92.0, 106.3, 108.8, 113.7, 122.3, 124.7, 130.0, 140.5; IR (film): 2926, 2854, 2153, 1869, 1629, 1598, 1483, 1406, 1382, 1350, 1318, 1287, 1248, 1202, 1149, 1133, 1059 cm−1; MS (EI): m/z 555.4, 372.1, 73.1. These spectroscopic data were in agreement with those previously reported.2
11. A small portion of compound 4 was further purified by column chromatography (n-hexanes/EtOAc, 100/1 to 20/1) to afford analytically pure material. The analytical data from compound 4 were as follows: TLC Rf = 0.29 (n-hexanes/EtOAc, 20/1); 1H NMR pdf (CDCl3, 500 MHz) δ: 0.88 (t, J = 7.3 Hz, 3 H), 1.22–1.35 (m, 22 H), 1.84 (tt, J = 7.1 and 7.1 Hz, 2 H), 3.00 (s, 2 H), 4.25 (t, J = 7.3 Hz, 2 H), 7.32 (d, J = 8.6 Hz, 2 H), 7.60 (dd, J = 8.3, 1.5 Hz, 2 H), 8.21 (d, J = 1.1 Hz, 2 H); 13C NMR (CDCl3, 125 MHz) δ: 14.1, 22.7, 27.2, 28.9, 29.30, 29.33, 29.43, 29.50, 29.56, 29.60, 29.62, 29.64, 31.9, 43.3, 75.4, 84.7, 108.9, 112.7, 122.2, 124.7, 130.1, 140.6; IR (film): 3279 (s), 2924 (s), 2849 (s), 2103 (s), 1630 (m), 1598 (s), 1483 (s), 1381 (m), 1349 (s), 1321 (w), 1290 (s), 1234 (m), 1153 (s), 1134 (m), 882 (s), 812 (s), 728 (w), 681 (m), 653 (s), 614 (s) cm−1; LRMS (EI): m/z 411.3, 228.1, 75.0. Anal. Calcd for C30H37N: C, 87.54; H, 9.06; N, 3.40. Found: C, 87.38; H, 8.78; N, 3.63. These spectroscopic data were in agreement with those previously reported.2
12. The appearance of more than one 1H NMR singlet around d 3.1 ppm (terminal acetylene) indicated the presence of mono-desilylation side product. In this case, 4 was further purified by column chromatography [n-hexanes/EtOAc, 100/1 to 20/1, TLC Rf = 0.29 (n-hexanes/EtOAc, 20/1].
13. Pd2(dba)3 and PPh3 (99%) were purchased from Strem Chemicals, Inc. and used as received.
14. 4-Benzoyl-4'-bromobiphenyl (99%) was purchased from Lancaster and used as received.
15. The submitters reported the use of a Kugelrohr short-path distillation apparatus (Cat. No. Z401137-1SET), which was purchased from Aldrich Chemical Company, Inc.
16. A small portion (500 mg) of compound 5 was further purified by recrystallization from hot isopropyl acetate (ca. 20 mL) to provide analytically pure material. The analytical data from compound 5 were as follows: mp 162–167 °C; TLC Rf = 0.26 (CH2Cl2/n-hexanes, 1/1); 1H NMR pdf (CDCl3, 500 MHz) δ: 0.88 (t, J = 7.1 Hz, 3 H, CH3), 1.19–1.41 (m, 22 H, CH2), 1.89 (tt, J = 7.1, 7.1 Hz, 2 H), 4.31 (t, J = 7.3 Hz, 2 H), 7.40 (d, J = 8.4 Hz, 2 H), 7.52 (m, 4 H), 7.61 (tt, J = 7.5, 1.4 Hz, 2 H), 7.66–7.71 (m, 10H), 7.74 (d, J = 8.6 Hz, 4 H), 7.85 (m, 4 H), 7.92 (d, J = 8.4 Hz, 4 H), 8.32 (d, J = 1.4 Hz, 2 H); 13C NMR (CDCl3, 125 MHz) δ: 14.1, 22.7, 27.2, 28.9, 29.3, 29.46, 29.51, 29.57, 29.61, 29.62, 29.64, 31.9, 43.4, 87.6, 92.0, 109.1, 113.7, 122.5, 123.8, 124.2, 126.8, 127.2, 128.3, 129.8, 130.0, 130.8, 132.1, 132.4, 136.4, 137.7, 139.2, 140.6, 144.4, 196.3; IR (KBr): 2924, 2851, 2201, 1648, 1600, 1522, 1481, 1384, 1317, 1277, 1150 cm−1. LRMS (MALDI): m/z 923.94, 825.5, 809.5, 755.9, 740.8, 567.4, 551.4, 545.4. Anal. Calcd for C68H61NO2: C, 88.38; H, 6.65; N, 1.52. Found: C, 88.06; H, 6.41; N, 1.70. These spectroscopic data were in agreement with those previously reported.2
17. The submitters found that the appearance of more than one 1H NMR triplet around d 4.3 ppm (α-methylene protons on the tetradecyl side chain) indicated the presence of unreacted starting material and/or mono-alkynylated product. In this case, 5 could be further purified by column chromatography [n-hexanes/CH2Cl2, 1/1 v/v, TLC Rf = 0.26 (CH2Cl2/n-hexane, 1/1)].
18. Gram-scale preparation of trisamidomolybdenum(VI) propylidyne is reported in the preceding Organic Syntheses report.
19. A red precipitate was observed during mixing, and was presumably due to the low solubility of the species generated in CCl4. In the case of chloroform, ethyl acetate or THF as solvent, no precipitate was observed.
20. Only a portion of monomer 5 dissolved in CCl4 at the start of the reaction. However, the poor solubility of 5 did not affect the macrocycle synthesis. As the metathesis reaction proceeded, monomer 5 dissolved and was transformed into soluble macrocycles.
21. In addition to CCl4, 1,2,4-trichlorobenzene and toluene are alternative solvents for the macrocycle synthesis. The amount of aromatic impurities observed in the reaction (based on 1H NMR analysis) conducted in CCl4 was less than that observed in toluene.
22. In a previous report on the small-scale synthesis of macrocycle 6 via precipitation-driven alkyne metathesis,2 the reaction was conducted at 30 °C. However, for gram-scale preparation, the low solubility of oligomeric intermediates dramatically increased the solution viscosity and made stirring difficult. Raising the reaction temperature from 30 °C to 50 °C greatly improved the intermediate solubility and allowed efficient stirring.
23. The crude product 6 (after methanol wash, before column separation) was obtained in 98% yield (6.13 g) and contained a small amount of aromatic impurities (mainly 4-benzoyl-4'-bromobiphenyl). Macrocycles of high purity were obtained after column chromatography. The analytical data from compound 6 were as follows: mp 222–224 °C; TLC; Rf = 0.89 (CHCl3/CH2Cl2, 3/1); 1H NMR pdf (CDCl3, 500 MHz) δ: 0.88 (t, J = 7.1 Hz, 12 H), 1.20–1.45 (m, 88 H), 1.90 (tt, J = 7.1, 7.1, 8 H), 4.31 (t, J = 7.1 Hz, 8 H), 7.39 (d, J = 8.5 Hz, 8 H), 7.71 (dd, J = 8.3, 1.3 Hz, 8 H), 8.42 (d, J = 0.7 Hz, 8 H); 13C NMR (CDCl3, 125 MHz) δ: 14.1, 22.7, 27.3, 29.0, 29.35, 29.50, 29.55, 29.60, 29.64, 29.67, 31.9, 43.3, 89.0, 108.9, 114.4, 122.6, 123.9, 129.3, 140.1; IR (KBr): 2922, 2848, 1628, 1599, 1570, 1490, 1382, 1352, 1307, 1283, 1214, 1148, 1131 cm−1; MS (MALDI): m/z 1542.7, 1370.1. Anal. Calcd for C112H140N4: C, 87.22; H, 9.15; N, 3.63; Found: C, 86.84; H, 9.19; N, 3.26. These spectroscopic data were in agreement with those previously reported.2
24. The checkers found that accurate analytical data could be obtained from 6 only after thorough drying at 0.3 mm Hg in an Abderhalden apparatus heated with refluxing xylenes.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
Shape-persistent arylene ethynylene macrocycles have attracted attention in the fields of supramolecular chemistry and materials science over the past decade due to their novel properties and potential applications.3 However, the study and application of shape-persistent macrocycles are impeded by inefficient macrocycle syntheses. The usual preparation involves a large number of synthetic steps, requires dilute conditions (< 1 mM), and affords low overall yields.4 Considerable efforts have been devoted to the development of methodologies allowing selectively functionalized structures to be obtained in high yields.
Conventional synthetic routes for arylene ethynylene macrocycles are dominated by Sonogashira coupling5 between aryl iodides and terminal acetylenes and Glaser-type couplings6 between terminal acetylenes. These cross-coupling approaches have advantages such as high tolerance of functional groups, with generally high yields in the individual steps. However, to obtain high yields of macrocycles, precursor oligomers must be pre-synthesized in a stepwise fashion and subsequently subjected to cross-coupling reactions under pseudo-high dilution condition (< 1 mM) to form macrocycles via intramolecular cyclization. Such tedious and time-consuming synthesis of the precursors impedes the efficient large-scale preparation of macrocycles via this route. Random cyclization of three or more monomer units has also been applied to preparing target macrocycles, but usually only low yields (1–18% on cyclization step) were obtained.7
Inspired by the successful applications of thermodynamically controlled reversible reactions in preparing unique molecular architectures8 such as macrocyclic compounds, molecular capsules and interlocked structures, we envisioned that a convenient synthesis of arylene ethynylene macrocycles could be accomplished by using dynamic covalent chemistry.9 In the past two decades, there has been rapid progress in alkyne metathesis catalyzed by either defined carbyne complexes10 or catalysts generated in situ.11 The ready availability of highly active Mo(VI) alkylidyne catalysts synthesized by a reductive recycle strategy12 and successful examples of using dynamic covalent chemistry in organic syntheses prompted us to develop a synthetic approach to macrocycle preparation directly from a monomer.
We reported a successful approach involving precipitation-driven alkyne metathesis for convenient, multi-gram synthesis of arylene ethynylene macrocycles near room temperature.2 Driven by the precipitation of a diarylacetylene byproduct, the desired macrocycles were obtained in one step from monomers in high yields. Macrocycle formation is a thermodynamically favored process under equilibrium control.13
We have utilized precipitation-driven alkyne metathesis to prepare other carbazole-based tetrameric macrocycles, such as 10c. The four side chains are easily removed via thermolysis.14 The resulting macrocycles may exhibit interesting electronic properties such as mixed-valence (MV) states.15

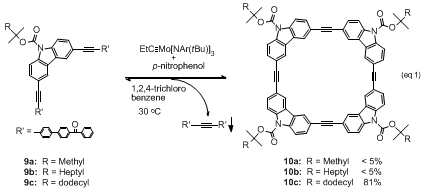

Three dialkyne monomers 9a-c, which are functionalized with t-butyl carboxylate, 1,1-dimethyloctyl carboxylate and 1,1-dimethyltridecyl carboxylate, respectively, were prepared and subjected to standard metathesis conditions (eq 1). In the case of 9a-b, at the end of the reaction nearly quantitative conversion of starting monomers into insoluble materials was observed. Based on elemental analysis, the insoluble materials are believed to be a mixture of intermediate oligomers and diarylacetylene byproduct. In great contrast, metathesis of monomer 9c proceeded well in 1,2,4-trichlorobenzene at 30 °C, and tetrameric macrocycle 10c was obtained in 81% isolated yield.16
The successful generation of tetrameric macrocycle 6 and 10c, as well as those failed cases when using monomer 9a-b, illustrate the importance of balancing the solubility through the course of macrocycle formation.13 In the case of metathesis of 9a-b, the generated oligomeric species, either open-chain or cyclic versions, presumably precipitate out of solution due to their insufficient solubility. In great contrast, carbazole oligomers with 1,1-dimethyltridecyl carboxylate side chains (from metathesis of 9c) have better solubility and intermediate species remain in solution, thus allowing for high yield formation of tetracycles via alkyne metathesis-a dynamic covalent approach.
This finding has important practical significance in that it demonstrates that the solubility of longer arylene ethynylene oligomers, especially those overshooting the target macrocycle length, must be taken into consideration to accomplish high-yield macrocycle syntheses. All the intermediate compounds should be sufficiently soluble along the reaction pathway to allow the thermodynamically stable product to be obtained through reversible alkyne metathesis.
It is envisioned that the successful preparation of macrocycles using the precipitation-driven, reversible alkyne-metathesis may open the way to other two-dimensional or three-dimensional arylene ethynylene structures, as well as alkyne-bridged oligomers and polymers.
