Org. Synth. 2010, 87, 201
DOI: 10.15227/orgsyn.087.0201

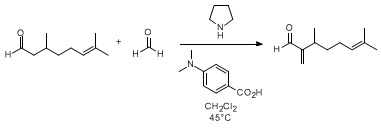

ORGANOCATALYTIC α-METHYLENATION OF ALDEHYDES: PREPARATION OF 3,7-DIMETHYL-2-METHYLENE-6-OCTENAL
Submitted by Meryem Benohoud, Anniina Erkkilä, and Petri M. Pihko1.
Checked by Yunus Turkmen and Viresh Rawal.
1. Procedure
A 100-mL, three-necked round-bottomed flask (Note 1), equipped with an 8 × 13 mm octagonal magnetic stir bar, a condenser, a rubber septum, and an internal thermometer, is charged with 4-(dimethylamino)benzoic acid (661 mg, 4.0 mmol) (Note 2). The system is evacuated, filled with nitrogen, and charged with dichloromethane (40 mL) (Notes 3-4) and pyrrolidine (334 μL, 4.0 mmol) (Notes 5-6), added sequentially. The resulting colorless solution is placed in an oil bath and heated to 35 °C (internal temperature). To this stirred solution is added via syringe (±)-citronellal ((±)-3,7-dimethyl-6-octenal) (7.20 mL, 40.0 mmol) (Note 7) and 37% aqueous formaldehyde solution (2.98 mL, 40.0 mmol) (Notes 8-9). The mixture is heated to reflux (bath temperature 50 °C) and maintained at reflux for 30 min (Note 10). The reaction mixture is cooled to room temperature, diluted with dichloromethane (20 mL) and transferred to a 250-mL separatory funnel. The reaction flask was rinsed with additional dichloromethane (3 × 7 mL). The organic phase is washed with water (40 mL) and then a saturated solution of NaHCO3 (40 mL). The combined aqueous layers are extracted with dichloromethane (3 × 20 mL). The combined organic phases are dried over anhydrous Na2SO4 (35 g), filtered and concentrated by rotary evaporation (30 °C, 20 mmHg). The flask is then placed under a vacuum (1.5 mmHg) (Note 11) for ca. 30 min to afford 3,7-dimethyl-2-methylene-6-octenal as a light yellow liquid in quantitative yield (6.65 g). The resulting material is sufficiently pure for further reactions. Distillation of the product from a 25-mL flask, under reduced pressure, using a one-piece distillation apparatus equipped with a 6-cm Vigreux column, affords 3,7-dimethyl-2-methylene-6-octenal (5.44-5.93 g, 82-89%) as a colorless liquid (bp 68 °C/0.3 mmHg) (Notes 12-16).
2. Notes
1. The checkers carried out the reaction under an inert atmosphere. The apparatus was oven-dried overnight and assembled while hot. It was then evacuated and filled with nitrogen three times and maintained under a positive pressure of nitrogen during the course of the reaction.
2. 4-(Dimethylamino)benzoic acid (98%) was purchased from Aldrich Chemical Co.
3. A white suspension is observed at this point. 4-(Dimethylamino)benzoic acid is only sparingly soluble in dichloromethane.
4. Dry dichloromethane was obtained from an MBraun Solvent Purification System. Checkers used dichloromethane (Optima®) purchased from Fisher Scientific, Inc. and purified through an Innovative Technology solvent purification system (activated alumina). The solvent was dried to ensure reproducible water content in the reaction mixture. However, the conditions are not strictly anhydrous as water is present in the formaldehyde solution.
5. The submitters obtained pyrrolidine from Aldrich Chemical Co. and purified it before use by distillation under argon. Checkers purchased pyrrolidine (≥99.5%, redistilled, Sure/Seal) from Aldrich Chemical Co. and used it as received.
6. Most of the white suspension disappeared when pyrrolidine was added to the reaction mixture. The remaining few solid particles dissolved when the internal temperature reached 30 °C
7. (±)-Citronellal (purum, >95.0% (GC)) was obtained from Aldrich Chemical Co. and used as received. This compound should be handled carefully as it is irritating to the eyes, skin and respiratory system.
8. Formaldehyde (37 wt. % solution in water, A.C.S. reagent) was purchased from Aldrich Chemical Co. and used as received.
9. The checkers used 1.05 equiv (42.0 mmol, 3.13 mL) of formaldehyde for the second run. However, the 1H-NMR of the crude product didn't show any improvement when compared with that of the first run.
10. The progress of the reaction can be followed by TLC (hexanes/ethyl acetate 9/1, anisaldehyde stain). (±)-Citronellal Rf = 0.51, product Rf = 0.60).
11. The submitters used 0.1 mmHg vacuum.
12. The submitters reported the boiling point as 94-97 °C at 0.1 mmHg.
13. The submitters reported obtaining 5.60 g (84%) of the product.
14. The checkers carried out the reaction twice at full scale. First run: 5.44 g, 82% (68 °C, 0.3 mmHg). Second run: Fraction 1 (0.72 g), fraction 2 (5.04 g), fraction 3 (obtained by heating the Vigreux column with a heat gun, 0.17 g); total yield 5.93 g, 89%; bp 73 °C at 0.4 mmHg. All three fractions were pure by NMR. 1H and 13C NMR, GC-MS, and elemental analysis data were obtained by using the 2nd fraction.
15. Spectroscopic data of (±)-3,7-dimethyl-2-methyl-6-octenal closely matched published data2,3: 1H NMR pdf (500 MHz, CDCl3) δ: 1.04 (d, J = 7.0 Hz, 3 H), 1.32-1.40 (m, 1 H), 1.47-1.53 (m, 1 H), 1.54 (s, 3 H), 1.65 (s, 3 H), 1.85-1.96 (m, J = 8.0 Hz, 2 H), 2.68 (sext, J = 7.0 Hz, 1 H), 5.05 (m, J= 7.0, 1.5 Hz, 1 H), 5.97 (s, 1 H), 6.21 (s, 1 H), 9.51 (s, 1 H); 13C NMR pdf (125 MHz, CDCl3) δ: 17.8, 19.7, 25.8, 25.9, 31.1, 35.8, 124.3, 131.8, 133.2, 155.7, 194.8; IR (film) 2966, 2926, 2857, 1696, 1454, 1377, 945 cm-1; Anal. calcd. for C11H18O: C, 79.46; H, 10.91; O, 9.63; found: C, 79.66; H, 10.88; O, 9.46; GC-MS (column ZB-5MS 0.25 μm × 250 μm × 30 m, initial T = 50 °C for 1.0 min, ramp = 15.0 °C/min to 260 °C, hold for 10 min., MS: Source T = 150 °C, EI+): Rt = 7.15 min., m/z 165.9, 151.0, 149.0, 123.0, 109.0, 81.0.
16. The product may polymerize during storage and it should be stored in the freezer (-20 °C). Safety and Waste Disposal Information All hazardous materials should be handled and disposed of in accordance with "Prudent Practices in the Laboratory"; National Academy Press; Washington, DC, 1995.
3. Discussion
Several methods for the preparation of α-substituted acroleins are available; however, typically, these require relatively drastic conditions, including high temperature and high pressure.4,5 Moreover, only the preparation of simple α-substituted acroleins has been reported using these methods. More complex aldehydes have required milder, but non-catalytic, procedures6,7 such as Horner-Wadsworth-Emmons reactions8,9 or Mannich reactions10 with Eschenmoser's salt. The present method allows the rapid synthesis of α-substituted-α,β-unsaturated aldehydes in good yields with simple reagents and tolerates a variety of functionalities (Table 1). The procedure described herein represents an improved and faster protocol when compared to our originally published method.11 The products are potentially highly useful intermediates in organic synthesis,12 given the range of possible transformations, such as 1,2-13,14 and 1,4-additions,15-18 Baylis-Hillman reactions,19-20 Diels-Alder reactions,21-24 and a number of organocatalyzed transformations.25-27

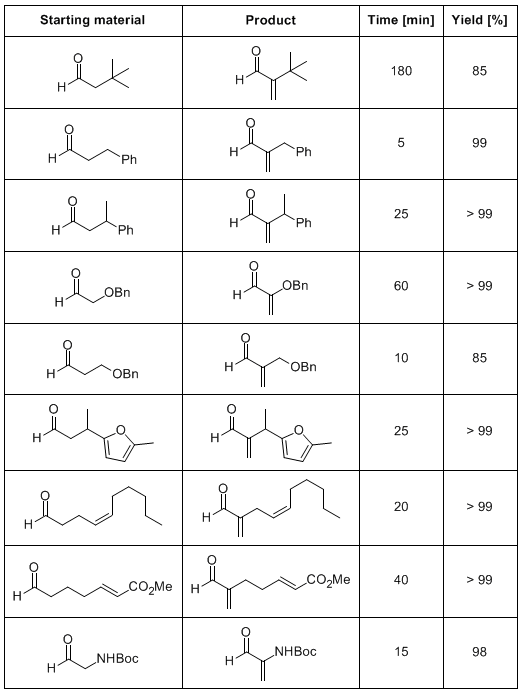

Table 1 Formation of α-substituted acroleins
Table 1 Formation of α-substituted acroleins

References and Notes
  1. Department of Chemistry, University of Jyväskylä, P. O. B: 35, FI-40014 JYU, Finland. E-mail:
  2. Erkkilä, A.; Pihko, P. M. Eur. J. Org. Chem. 2007, 4205-4216.
  3. White, J. D.; Amedio, J. C.; Gut, S.; Ohira, S.; Jayasinghe, L. R. J. Org. Chem. 1992, 57, 2270-2284.
  4. Häusermann, M. Helv. Chim. Acta 1951, 34, 1482-1491.
  5. Offenhauer, R. D.; Nelsen, S. F. J. Org. Chem. 1968, 33, 775-777.
  6. Hon, Y.-S.; Chang, F.-J.; Lu, L. J. Chem. Soc., Chem. Commun. 1994, 2041-2042.
  7. Hon, Y.-S.; Chang, F.-J.; Lu, L.; Lin, W.-C. Tetrahedron 1998, 54, 5233-5246.
  8. Boehm, H. M.; Handa, S.; Pattenden, G.; Roberts, L.; Blake, A. J.; Li, W.-S. J. Chem. Soc., Perkin Trans. I 2000, 3522-3538.
  9. Villiéras, J.; Rambaud, M. Synthesis 1984, 406-408.
  10. Kinast, G.; Tietze, L. F. Angew. Chem. Int. Ed. 1976, 15, 239-240.
  11. Erkkilä, A.; Pihko, P. M. J. Org. Chem. 2006, 71, 2538-2541.
  12. Evans, D. A.; Ratz, A. M.; Huff, B. E.; Sheppard, G. S. J. Am. Chem. Soc. 1995, 117, 3448-3467.
  13. Ken, O.; Shigeru, M.; Ryosuke, G.; Masayuki, I. Angew. Chem. Int. Ed. 2010, 49, 329-332.
  14. Mann, R. K.; Parsons, J. G.; Rizzacasa, M. A. J. Chem. Soc., Perkin Trans. I 1998, 1283-1294.
  15. Perlmutter, P. Conjugate Addition Reactions in Organic Synthesis; Pergamon: Oxford, 1992.
  16. Rossiter, B. E.; Swingle, N. M. Chem. Rev. 1992, 92, 771-806.
  17. Giorgi, G.; Miranda, S.; Lopez-Alvarado, P.; Avendano, C.; Rodriguez, J.; Menendez, J. C. Org. Lett. 2005, 7, 2197-2200.
  18. Ho, C.-Y.; Schleicher; D., K.; Chan, C.-W.; Jamison, T. F. Synlett 2009, 2565-2582.
  19. Basavaiah, D.; Dharma Rao, P.; Suguna Hyma, R. Tetrahedron 1996, 52, 8001-8062.
  20. Basavaiah, D.; Rao, A. J.; Satyanarayana, T. Chem. Rev. 2003, 103, 811-892.
  21. Kagan, H. B.; Riant, O. Chem. Rev. 1992, 92, 1007-1019.
  22. Li, J.; Li, X.; Zhou, P.; Zhang, L.; Luo, S.; Cheng, J.-P. Eur. J. Org. Chem. 2009, 4486-4493.
  23. Min, S.-J.; Jones, G. O.; Houk, K. N.; Danishefsky, S. J. J. Am. Chem. Soc. 2007, 129, 10078-10079.
  24. Corey, E. J.; Guzman-Perez, A. Angew. Chem. Int. Ed. 1998, 37, 388-401.
  25. Kano, T.; Tanaka, Y.; Osawa, K.; Yurino, T.; Maruoka, K. Chem. Commun. 2009, 1956-1958.
  26. Erkkilä, A.; Pihko, P. M.; Clarke, M.-R. Adv. Synth. Catal. 2007, 349, 802-806.
  27. Ishihara, K.; Nakano, K. J. Am. Chem. Soc. 2005, 127, 10504-10505.

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

4-(Dimethylamino)benzoic acid: (619-84-1)

Pyrrolidine (123-75-1)

(±)-Citronellal: ((±)-3,7-dimethyl-6-octenal); (106-23-0)

3,7-Dimethyl-2-methylene-6-octenal; (22418-66-2)

37% Aqueous formaldehyde; (50-00-0)
