Org. Synth. 2016, 93, 63-74
DOI: 10.15227/orgsyn.093.0063
Trichloroboron-promoted Deprotection of Phenolic Benzyl Ether Using Pentamethylbenzene as a Non Lewis-Basic Cation Scavenger
Submitted by Shun Okaya, Keiichiro Okuyama, Kentaro Okano, and Hidetoshi Tokuyama1*
Checked by Brandon Nelson, Nicholas Garcia, and Mohammad Movassaghi

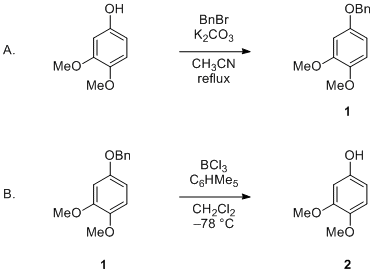

1. Procedure
A. 4-Benzyloxy-1,2-dimethoxybenzene (1). A 500-mL one-necked round-bottomed flask equipped with a Teflon-coated magnetic stir bar (3.5 x 1.0 cm), with an argon gas inlet is charged with 3,4-dimethoxyphenol (8.32 g, 54.0 mmol) (Note 1), potassium carbonate (8.29 g, 60.0 mmol, 1.11 equiv) (Note 2), and is fitted with a reflux condenser with an argon gas inlet. MeCN (95 mL) (Note 3) is added to the reaction flask. After stirring for 10 min at ambient temperature, benzyl bromide (6.54 mL, 55.0 mmol, 1.02 equiv) (Note 4) is added. The reflux condenser is washed with MeCN (5 mL) and the resulting mixture is stirred for 20 min. Then, the reaction mixture is heated to reflux for 2 h (Note 5). The mixture is cooled to ambient temperature, and filtered through a 2 cm pad of Celite; the transfer is completed by washing the reaction flask with EtOAc (2 x 25 mL). The filtrate is concentrated on a rotary evaporator under reduced pressure (30 °C, 8 mmHg) and dried in vacuo (2.5 mmHg) to afford 13.95 g of a crude benzyl ether as an orange solid, which is purified by silica gel column chromatography (elution: 15% EtOAc in hexanes) (Note 6) to provide 4-benzyloxy-1,2-dimethoxybenzene (1) as colorless crystals (11.90 g, 90%) (Notes 7, 8, and 9).
B. 3,4-Dimethoxyphenol (2). A 1-L oven-dried three-necked round-bottomed flask equipped with a Teflon-coated magnetic stir bar (3.5 x 1.0 cm), a rubber septum, a glass stopper, and an argon gas inlet is charged with 4-benzyloxy-1,2-dimethoxybenzene (1) (7.33 g, 30.0 mmol), pentamethylbenzene (13.34 g, 90.0 mmol, 3.0 equiv) (Note 10), and anhydrous CH2Cl2 (150 mL) (Note 11) (Figure 1).

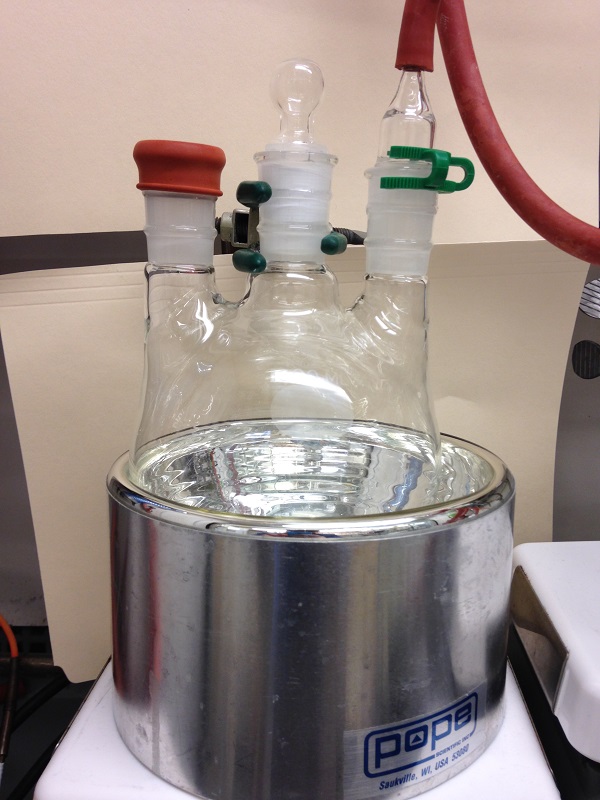

Figure 1. Apparatus assembly for Step B
After the reaction mixture is cooled to -78 °C (bath temperature), 1 M boron trichloride in CH2Cl2 (60.0 mL, 60.0 mmol, 2.0 equiv) (Note 12) is added to the flask dropwise over 5 min at -78 °C. After stirring for 45 min at -78 °C, the mixture is quenched by syringe addition of chloroform/methanol (10/1, 60.0 mL) (Note 13) at -78 °C and is warmed to ambient temperature. The solution is concentrated on a rotary evaporator under reduced pressure (30 °C, 8 mmHg), and dried in vacuo (2.5 mmHg) to afford 24.58 g of a crude phenol as a pale yellow solid, which is purified by silica gel column chromatography (elution: 30% EtOAc, 5% toluene, 65% hexanes) (Notes 14 and 15). The fraction containing the product are collected and concentrated on a rotary evaporator under reduced pressure to yield 3,4-dimethoxyphenol (2) as pale yellow crystals (4.22 g, 91.2%) (Notes 16 and 17).
2. Notes
1. 3,4-Dimethoxyphenol (96%) was purchased from Tokyo Chemical Industry Co., Ltd. and used as received without further purification.
2. Potassium carbonate (99%, powdered, ~325 mesh) was purchased from Sigma-Aldrich Co. and used as received without further purification.
3. Acetonitrile (>99.5%) was purchased from Wako Pure Chemical Industries, Ltd. and used as received without further purification.
4. Benzyl bromide (>98%) was purchased from Wako Pure Chemical Industries, Ltd. and used as received without further purification.
5. The reaction typically requires 2 h to complete and is monitored by TLC analysis on Merck silica gel 60 F254 plates eluting with EtOAc/hexanes (1:1). The Rf values of the phenol and benzyl ether are 0.33 and 0.65, respectively (visualized with 254 nm UV lamp and stained with an ethanol solution of p-anisaldehyde. After dipping the TLC plate to the solution, the chromatogram is stained by heating.
6. The crude material is dissolved in eluent (20 mL) and CH2Cl2 (5 mL) and is charged onto a column (diameter = 10 cm, height = 20 cm) of 400-gram silica gel. The column was eluted with 15% EtOAc/hexanes and 75-mL fractions were collected. Fraction 19-29 were combined and concentrated on a rotary evaporator under reduced pressure.
7. When the reaction was performed on half-scale, the isolated yield was 5.70 g (86%).
8. If crystallization is desired after chromatography, the residue is dissolved in hot EtOAc/hexanes, 1:3 (40 mL) using an oil bath (bath temperature: 95 ℃). The solution is then cooled at 0 ℃ in an ice bath for 30 min. The colorless crystals are collected by filtration (78~86%).
9. The compound (purified by chromatography) exhibits the following physicochemical properties: Rf = 0.65 (hexanes/EtOAc = 1:1); Merck silica gel 60 F254 plates (visualized with 254 nm UV lamp and stained with an ethanol solution of p-anisaldehyde. After dipping the TLC plate to the solution, the chromatogram is stained by heating); mp 48-48.5 °C (EtOAc/hexanes); IR (CH2Cl2, cm-1): 2936, 1596, 1509, 1450, 1280, 1227, 1196, 1159, 1137, 731; 1H NMR pdf(500 MHz, CDCl3) δ: 3.84 (s, 3H), 3.85 (s, 3H), 5.02 (s, 2H), 6.48 (dd, J = 8.7, 2.8 Hz, 1H), 6.61 (d, J = 2.8 Hz, 1H), 6.78 (d, J = 8.7 Hz, 1H), 7.33 (app-t, J = 7.2 Hz, 1H), 7.40 (app-t, J = 7.4 Hz, 2H), 7.44 (app-d, J = 6.9 Hz, 2H). 13C NMR pdf(125 MHz, CDCl3) δ: 56.5, 57.1, 71.3, 101.9, 104.7, 112.4, 128.3, 128.7, 129.3, 137.8, 144.3, 150.5, 154.1. [M + H] calcd. for C15H16O3:: 245.1172, Found: 245.1163. Anal. calcd. for C15H16O3: C, 73.75; H, 6.60. Found: C, 73.51; H, 6.59.
10. Pentamethylbenzene (>99%) was purchased from Tokyo Chemical Industry Co., Ltd. and used as received without further purification.
11. CH2Cl2 (>99.5% anhydrous, water content: <0.001%) was purchased from Kanto Chemical Co., Inc. and used as received without further purification.
12. Boron trichloride 1.0 M in CH2Cl2 was purchased from Sigma-Aldrich Co. and used as received without further purification.
13. The reaction typically requires 30 min to consume all the 3,4-dimethoxyphenol-1-benzyl ether and is monitored by TLC analysis on Merck silica gel 60 F254 plates eluting with EtOAc/hexanes (1:1). The Rf values of the starting material, the undesired 2-benzyl-4,5-dimethoxyphenol, the desired 3,4-dimethoxyphenol are 0.65, 0.40, and 0.33, respectively (visualized with 254 nm UV lamp and stained with an solution of p-anisaldehyde. After dipping the TLC plate to the solution, the chromatogram is stained by heating).
14. Integration of the 1H NMR spectra of the crude material indicated that the molar ratio of desired phenol: benzylpentamethylbenzene: pentamethylbenzene = 1:1.07: 2.20. The crude material is dissolved in eluent (15 mL) and then charged onto a column (diameter = 8 cm, height = 35 cm) of 400-gram silica gel. The column is eluted with 30% EtOAc, 5% toluene, 65% hexanes and 100-mL fractions are collected. Fractions 1-16 contain pentamethylbenzene and benzylpentamethylbenzene. Fractions 36-42 and 45-60 are combined and concentrated on a rotary evaporator under reduced pressure to provide undesired 2-benzyl-4,5-dimethoxyphenol and desired 3,4-dimethoxyphenol, respectively. Benzylpentamethylbenzene: 1H NMR (400 MHz, CDCl3) δ: 2.17 (s, 3H x 2), 2.25 (s, 3H x 2), 2.27 (s, 3H), 4.11 (s, 2H), 7.04 (d, J = 7.2 Hz, 2H), 7.15 (t, J = 7.6 Hz, 1H), 7.21-7.26 (m, 2H); 13C NMR (100 MHz, CDCl3) δ: 16.83, 16.85, 16.9, 36.1, 125.6, 127.9, 128.3, 132.5, 132.8, 133.1, 133.8, 140.62.
15. Undesired 2-benzyl-4,5-dimethoxyphenol is obtained as a colorless oil (595 mg, 8%). Its physicochemical properties are as follows: Rf = 0.40 (EtOAc/hexanes = 1:1); Merck silica gel 60 F254 plates (visualized with 254-nm UV lamp and stained with an ethanol solution of Ce2(SO4)3 and phosphomolybdic acid (Ce-PMA). After dipping the TLC plate to the Ce-PMA solution, the chromatogram is stained by heating); IR (neat, cm-1): 3442, 2935, 1617, 1521, 1451, 1414, 1204, 1109, 998, 702; 1H NMR (400 MHz, CDCl3) δ: 3.80 (s, 3H), 3.83 (s, 3H), 3.93 (s, 2H), 4.34 (s, 1H), 6.45 (s, 1H), 6.66 (s, 1H), 7.17-7.24 (m, 3H), 7.26-7.33 (m, 2H); 13C NMR (100 MHz, CDCl3) δ: 35.8, 55.8, 56.6, 101.3, 114.6, 117.8, 126.2, 128.4, 128.5, 140.1, 142.9, 147.8, 148.3; HRMS (ESI). [M + Na]+ calcd. for C15H16NaO3: 267.0992. Found: 267.0988; Anal. calcd. for C15H16O3: C, 73.75; H, 6.60. Found: C, 72.99; H, 6.65. (The yields and data were provided by the submitters. This byproduct was not characterized by the checkers).
16. When the reaction was performed on half-scale, the isolated yield was 2.09 g (90%).
17. Desired 3,4-dimethoxyphenol is obtained as pale yellow crystals (4.22 g, 91.2%). The compound exhibits the following physicochemical properties: Rf = 0.33 (EtOAc/hexanes = 1:1); Merck silica gel 60 F254 plates (visualized with 254-nm UV lamp and stained with an solution of p-anisaldehyde. After dipping the TLC plate in the solution, the plate is stained by heating); mp 75.5-76.5 °C (hexanes/EtOAc); IR (neat, cm-1): 3418, 2937, 2835, 1604, 1507, 1455, 1434, 1219, 1194, 1154, 1022, 950, 764; 1H NMR pdf(500 MHz, CDCl3) δ: 3.77 (s, 3H), 3.80 (s, 3H), 6.35 (dd, J = 8.6, 2.8 Hz), 6.46 (d, J = 2.8 Hz, 1H), 6.71 (d, J = 8.6 Hz, 1H); 13C NMR pdf(100 MHz, CDCl3) δ: 56.5, 57.5, 101.4, 106.7, 113.2, 143.6, 150.5, 151.0; [M + H] calcd. for C8H10O3: 155.0703 Found: 155.0707. Anal. calcd. for C8H10O3: C, 62.33; H, 6.54. Found: C, 62.42; H, 6.51.
Working with Hazardous Chemicals
The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.
The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
The benzyl group is one of the most useful protective groups for a phenolic hydroxy group since phenol benzyl ethers are easily synthesized and tolerate various reaction conditions.2 Deprotection of a benzyl group is generally performed by palladium-catalyzed hydrogenolysis or acidic treatment. However, these methods are inapplicable for a substrate having an olefinic/acetylenic moiety and acid-labile functional groups. During our synthetic studies on yatakemycin having electron-rich aromatic rings and a thiol ester, we determined that a combination of BCl3 and pentamethylbenzene (C6HMe5) facilitated smooth debenzylation even at −78 °C3 by modifying Yoshino's conditions using TFA and C6HMe5.4 Pentamethylbenzene is a non-Lewis-basic cation scavenger and does not reduce Lewis acidity of BCl3 by coordination, unlike general cation scavengers such as PhSMe or Me2S that have lone electron pairs as a Lewis base.5 In addition, benzylpentamethylbenzene4,6 has low polarity, thus easily separated with the desired phenol by column chromatography (see Note 14).

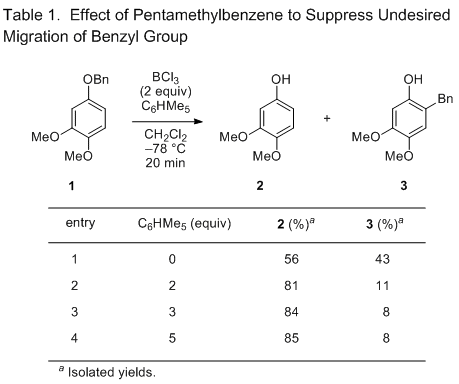

The effectiveness of C6HMe5 was examined through a control experiment using 4-benzyloxy-1,2-dimethoxybenzene (1) as a substrate (Table 1). Thus, in the absence of pentamethylbenzene, a substantial amount of the undesired product 3 was obtained via electrophilic C-benzylation (entry 1). After an extensive optimization of C6HMe5 equivalents, we determined that three C6HMe5 equivalents were sufficient to suppress the formation of an undesired product.

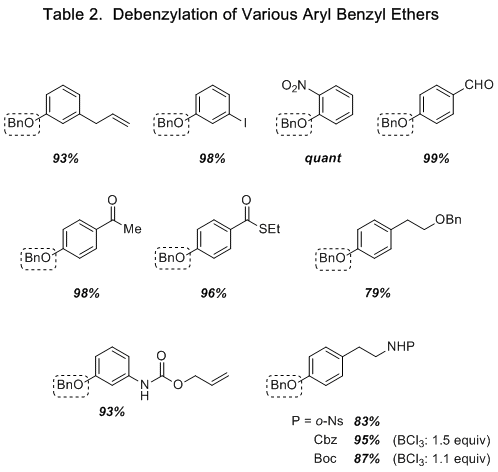

The deprotection conditions were applicable to a series of phenol benzyl ethers (Table 2). Allyl, iodo, nitro, formyl, acetyl, and thiol ester groups remained intact in this reaction. Selective removal of the benzyl group was also accomplished in the presence of aliphatic benzyl ether, Alloc carbamate, o-Ns amide, Cbz carbamate, and Boc carbamate to provide the corresponding phenols in good to excellent yields.5 In addition, the less polar benzylpentamethylbenzene as a co-product was easily removed by column chromatography.
Debenzylation is used in the synthesis of natural products and highly functionalized complex molecules (Table 3). In the total synthesis of yatakemycin, we performed the removal of the two benzyl groups with the labile thiol ester intact.3 At the later stage in the synthesis of haplophytine, we performed the deprotection of a Cbz carbamate in the presence of α,β-unsaturated imine.7 Nicolaou and Chen also employed the conditions to a similar substrate and successfully removed both benzyl and Cbz groups.8 Erhardt performed the deprotection of the two benzyl groups in the final step of the total synthesis of (±)-vestitol and bolusanthin III.9 They also provided a comment on this step that conventional conditions such as pentamethylbenzene/trifluoroacetic acid4 and boron tribromide proved to be very harsh, resulting in decomposition of the starting material. Vogel performed a selective deprotection of a benzyl group in the synthesis of polypropionates.10 Interestingly, they successfully discriminated two benzyl groups according to their electron densities; the more electron-rich benzyl group was removed faster than the other benzyl group bearing the CF3 group. In addition, exo-methylene and enol benzoate remained unreacted after the reaction. Kobayashi and co-workers applied the conditions to remove aliphatic benzyl ethers by replacing BCl3 with BBr3.11 Acid-labile and easily reduced triene remained intact under the conditions to provide the corresponding pentaol in 59% yield.

References and Notes
  1. Graduate School of Pharmaceutical Sciences, Tohoku University, Aramaki, Aoba-ku, Sendai 980-8578, Japan. E-mail: tokuyama@mail.pharm.tohoku.ac.jp
  2. (a) Kocienski, P. J. Protecting Groups; Thieme: New York, 1994. (b) Wuts, P. G. M. Protective Groups in Organic Synthesis, 5th ed.; Wiley-Interscience: New York, 2014.
  3. (a) Okano, K.; Tokuyama, H.; Fukuyama, T. J. Am. Chem. Soc. 2006, 128, 7136. (b) Okano, K.; Tokuyama, H.; Fukuyama, T. Chem. Asian J. 2008, 3, 296.
  4. Yoshino, H.; Tsuchiya, Y.; Saito, I.; Tsujii, M. Chem. Pharm. Bull. 1987, 35, 3438.
  5. Okano, K.; Okuyama, K.; Fukuyama, T.; Tokuyama, H. Synlett 2008, 1977.
  6. (a) Sun, H.-B.; Li, B.; Chen, S.; Li, J.; Hua, R. Tetrahedron 2007, 63, 10185. (b) Yamada, K.; Fujita, H.; Kunishima, M. Org. Lett. 2012, 14, 5026.
  7. Ueda, H.; Satoh, H.; Matsumoto, K.; Sugimoto, K.; Fukuyama, T.; Tokuyama, H. Angew. Chem. Int. Ed. 2009, 48, 7600.
  8. Nicolaou, K. C.; Dalby, S. M.; Li, S. L.; Suzuki, T.; Chen, D. Y. K. Angew. Chem. Int. Ed. 2009, 48, 7616.
  9. Luniwal, A.; Erhardt, P. W. Synlett 2011, 1605.
  10. Exner, C. J.; Turks, M.; Fonquerne, F.; Vogel, P. Chem. Eur. J. 2011, 17, 4246.
  11. Kanai, A.; Kuramochi, K.; Nakazaki, A.; Kobayashi, S. Symposium on the Chemistry of Natural Products 2006, 48, 373.

Appendix
Chemical Abstracts Nomenclature (Registry Number)

3,4-Dimethoxyphenol: Phenol, 3,4-dimethoxy-; (2) (2033-89-8)

Benzyl bromide: Benzene, (bromomethyl)-; (100-39-0)

Potassium carbonate: Carbonic acid, potassium salt (1:2); (584-08-7)

Acetonitrile: Acetonitrile; (75-05-8)

Trichloroborane: Borane, trichloro-; (10294-34-5)

Pentamethylbenzene: Benzene, 1,2,3,4,5-pentamethyl-; (700-12-9)

Dichloromethane: Methane, dichloro-; (75-09-2)
