Enantioselective Synthesis of α-Bromonitroalkanes for Umpolung Amide Synthesis: Preparation of tert-Butyl ((1R)-1-(4-(benzyloxy)phenyl)-2-bromo-2-nitroethyl)carbamate
Submitted by Victoria T. Lim, Sergey V. Tsukanov, Amanda B. Stephens, and Jeffrey N. Johnston1*
Checked by Fabian Konrad, Estíbaliz Merino and Cristina Nevado

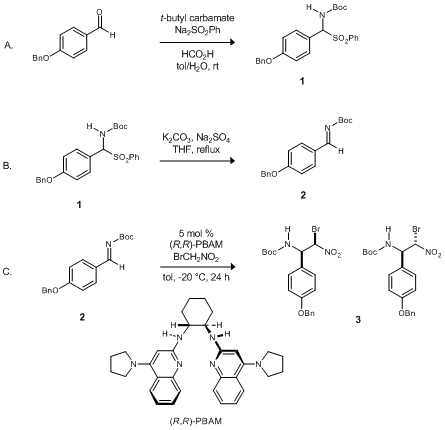

1. Procedure

Caution! Bromonitromethane is a strong oxidizing agent with properties similar to nitromethane. Keep away from heat and avoid mixing with combustible materials.

A. tert-Butyl ((4-(benzyloxy)phenyl)(phenylsulfonyl)methyl)carbamate (1). A 500-mL round-bottomed flask (29/32 neck) is equipped with a teflon-coated, egg-shaped stir bar (30 x 16 mm). The flask is charged with 4-benzyloxybenzaldehyde (10.0 g, 47.1 mmol, 1.2 equiv) and tert-butyl carbamate (4.60 g, 39.3 mmol, 1.0 equiv) (Note 1), then toluene (157 mL) (Note 2) is added, and the mixture is stirred until homogeneity is achieved. Benzenesulfinic acid sodium salt dihydrate (12.9 g, 64.4 mmol, 1.6 equiv) (Note 3) is introduced and then water (33 mL) is slowly added until the salt is completely dissolved. The flask is fitted with a rubber septum and an argon inlet needle. Formic acid (2.84 mL, 75.3 mmol, 2.0 equiv) (Note 4) is added, and the reaction is stirred for one week at room temperature (Note 5) Figure 1). The suspension is filtered through a Büchner funnel (7 cm diameter), fitted with filter paper. The reaction flask is rinsed with ether (2 x 100 mL and 1 x 50 mL) (Note 6) and the solid is soaked with the rinsates (2 x 100 mL and 1 x 50 mL) at room temperature for 30 min (Note 7). The suspension is stirred with a spatula every 5 min. Reduced pressure is used to facilitate the filtering process. The resulting crude product is transferred to a 500 mL Erlenmeyer flask.
v93p0088-2.jpg v93p0088-3.jpg v93p0088-4.jpg

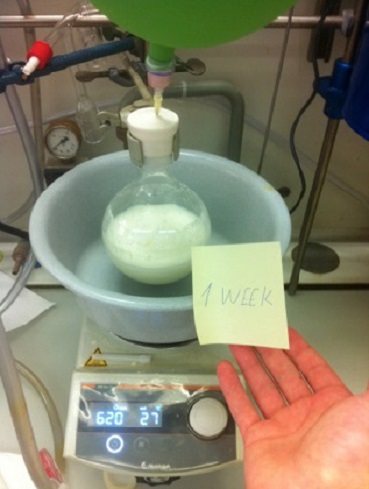

Figure 1. Initial appearance of Step A, appearance after 44 h, and appearance after 1 week.
Residual solid is washed from the filter with dichloromethane (50 mL) (Note 8). Additional dichloromethane (200 mL) is added, and the flask is stirred until the crude product is fully dissolved. The resulting solution is dried over MgSO4 (17.0 g) (Note 9), then filtered through a 350-mL fritted filter funnel into a pre-weighed 500-mL round-bottomed flask. The flask and the filter were rinsed with additional dichloromethane (2 x 50 mL). The dichloromethane solution is concentrated by rotary evaporation (40 °C, 23 mmHg) and further dried under vacuum (1-2 mmHg) for at least 10 h to leave 9.45-9.98 g of a white solid (Notes 7 and 10). The solid is used in step B without further purification.
B. (E)-tert-Butyl 4-(benzyloxy)benzylidenecarbamate (2). A 500-mL round-bottomed flask (29/32 neck) is equipped with a teflon-coated, egg-shaped stir bar (30 x 16 mm) (Note 11), charged with K2CO3 (18.2 g, 131.7 mmol, 6.0 equiv) and Na2SO4 (22.5 g, 158.3 mmol, 7.2 equiv) (Note 12). Sulfone (1) (9.97 g, 22.0 mmol) (Note 7) and THF (235 mL) (Note 13) were added. A condenser is attached to the reaction vessel, and the system is placed under an argon atmosphere. The reaction vessel is placed in an oil bath (85 °C), and heated to reflux for 3 h. The resulting mixture is cooled to room temperature (25 °C) and filtered through Celite® (1 inch layer) (Note 14) using a 350-mL fritted-filter funnel, washed with diethyl ether (2 x 100 mL) (Note 6) and additional diethyl ether (2 x 50 mL) is used to rinse residual material from the reaction vessel. The clear, colorless solution is collected in a pre-weighed 500-mL round-bottomed flask and concentrated by rotary evaporation (40 °C, 23 mmHg). The resulting product is further dried under vacuum (1-2 mmHg) to afford a white solid (6.80-6.94 g) (Note 15), which is used in step C without further purification (Note 16).

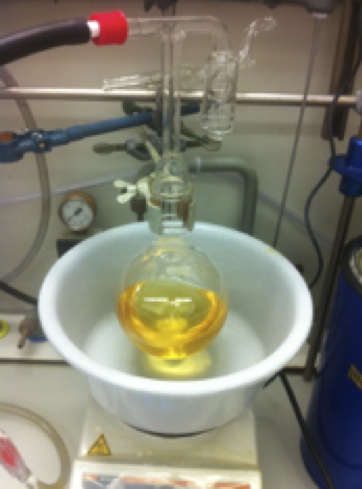

C. tert-Butyl ((1R)-1-(4-(benzyloxy)phenyl)-2-bromo-2-nitroethyl)carbamate (3). A 250-mL round-bottomed flask (29/32 neck) equipped with a teflon-coated, egg-shaped stir bar (30 x 16 mm) (Note 17), a rubber septum, and an argon inlet needle is charged with imine (2) (6.80 g, 21.9 mmol), toluene (120 mL) (Note 18), and (1R,2R)-N1,N2-bis[4-(1-pyrrolidinyl)-2-quinolinyl]- 1,2-cyclohexanediamine, ((R,R)-PBAM) (0.54 g, 1.10 mmol, 0.05 equiv) (Note 19). The reaction vessel is placed under argon atmosphere and the solution is cooled to -20 °C (Note 20) followed by the addition of bromonitromethane (1.81 mL, 26.1 mmol, 1.2 equiv) (Note 21). The reaction mixture is stirred at -20 °C for 24 h and the resulting yellow-orange solution (Figure 2) is concentrated using rotary evaporation (40 °C, 23 mmHg).
The product is redissolved in 50 mL of hot ethyl acetate (Note 22), filtered through a silica plug (Note 23), and washed with additional hot ethyl acetate (3 x 100 mL) into a 1000-mL receiving flask. The resulting clear, light yellow solution is concentrated by rotary evaporation (40 °C, 23 mmHg) and is dried under vacuum (1-2 mmHg) for 1 h. The resulting white solid is then transferred to a 50-mL Erlenmeyer flask and redissolved in hot ethyl acetate (ca. 30 mL).

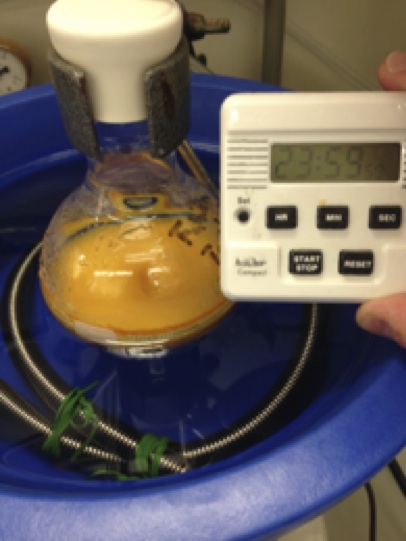

Figure 2. Appearance of Step C after 24 h.
The solution is allowed to slowly cool to room temperature before it is placed in an ice-water bath. After 1 h the resulting crystals were vacuum filtered through a Büchner funnel (5 cm diameter). The crystallized product is washed with ice-cold ethyl acetate on the filter. The mother liquor and crystal washings were concentrated and subjected to the same recrystallization procedure twice to obtain additional product. The solid is transferred to a 100-mL round-bottomed flask and dried under vacuum (1-2 mmHg) to leave the product 3 as a 1.2:1 mixture of diastereoisomers (6.26-7.52 g, 34-40% overall yield) (Notes 25).
2. Notes
1. 4-Benzyloxyaldehyde (98%) was purchased from Alfa Aesar and tert-butyl carbamate (98%) was purchased from Sigma-Aldrich.
2. Toluene (99.9%) was purchased from Fisher Scientific Company and used as received.
3. Benzenesulfinic acid sodium salt dihydrate (97%) was purchased from Alfa Aesar. Benzene acid sodium salt anhydrous (Sigma Aldrich, 123579) also can be used with similar results.
4. Formic acid (≥95%) was purchased from Sigma-Aldrich.
5. A clear, pale yellow mixture was observed after addition of all reagents, and the product started to precipitate as a white solid after 1-2 h. By the second day, a thick white slurry of the product was formed.
6. Ethyl ether (99.9%) was purchased from Fisher Scientific Company and used as received.
7. The checkers observed more residual aldehyde (11-22%) than the submitters (<3%) by 1H-NMR of the crude reaction mixture. The submitters note that the suflone is insoluble in ether, allowing fresh ether to be used to thoroughly soak and wash the solid during the filtration process.
8. Dichloromethane (99.9%) was purchased from Fisher Scientific Company and used as received.
9. Magnesium sulfate was purchased from Fisher Scientific Company and used as received.
10. Data of product 1: Rf = 0.46 (30% EtOAc/hexanes); 1H NMR pdf(400 MHz, CDCl3) δ: 1.25 (s, 9H), 5.09 (s, 2H), 5.74 (d, J = 10.6 Hz, 1H), 5.88 (d, J = 10.0 Hz, 1H), 7.01 (d, J = 8.8 Hz, 2H), 7.31-7.43 (m, 7H), 7.52 (m, 2H), 7.63 (t, J = 7.4 Hz, 1H), 7.91 (d, J = 7.6 Hz, 2H); 13C NMR pdf(101 MHz, CDCl3) δ: 28.0, 70.1, 73.5, 81.2, 115.2, 122.0, 124.9, 127.4, 128.1, 128.6, 129.0, 129.4, 130.2, 133.8, 136.5, 137.0, 153.5, 160.0.
11. The apparatus with the salts was flame dried under reduced pressure (1-2 mmHg) and was allowed to cool to room temperature.
12. Potassium carbonate and sodium sulfate were purchased from Sigma-Aldrich and used as received.
13. Tetrahydrofuran (THF) was dried by passage through a column of activated alumina as described by Grubbs.2
14. Celite was purchased from Sigma-Aldrich and used as received.
15. The imine product was stored in a -78 °C freezer. 1H NMR pdf(400 MHz, CDCl3) δ: 1.59 (s, 9H), 5.13 (s, 2H), 7.04 (d, J = 9.0 Hz, 2H), 7.33-7.37 (m, 1H), 7.40-7.42 (m, 4H), 7.89 (d, J = 8.8 Hz, 2H), 8.89 (s, 1H); 13C NMR pdf(101 MHz, CDCl3) δ: 27.9, 70.2, 81.9, 115.2, 127.1, 127.5, 128.2, 128.7, 132.5, 136.0, 162.8, 163.3, 169.6; IR (CH2Cl2): 1698, 1507, 1496, 1455, 1366, 1236, 1162, 1016, 881, 830, 735, 696 cm-1. HRMS (ESI): Exact mass calcd for C19H22NO3 [M+H]+ 312.1594, found 312.1598.
16. The material was used as a reactant to prepare 3 and contained 3-16% of 4-benzyloxybenzaldehyde.
17. The flask was flame dried under reduced pressure (1-2 mmHg) and was allowed to cool to room temperature.
18. Toluene was dried by passage through a column of activated alumina as described by Grubbs.2
19. (R,R)-PBAM was prepared according to a published procedure.4
20. The reaction was cooled using a cryostat (at -20 °C) with an isopropanol bath.
21. Bromonitromethane (90%, tech.) was purchased from Sigma-Aldrich and used as received.
22. Ethyl acetate (99.9%) was purchased from Fisher Scientific Company and used as received.
23. A 350-mL fritted-glass funnel was packed with Celite® (1 inch layer) and silica gel (50 g).
24. A sample of racemic 3 can be prepared by stirring the imine and bromonitromethane in toluene with DMAP (10 mol%) for 10 min at room temperature, followed by its filtration through silica gel.
25. The enantiomeric excess of the major and minor diastereomers was determined to be 97% and 95% ee, respectively, by chiral HPLC analysis (Chiralcel AD-H, 20% iPrOH/hexanes, 1 mL/min, tr(d1e1, major) = 15.6 min, tr(d1e2, minor) = 19.33 min, tr(d2e2, minor) = 20.4 min), tr(d2e1, major) = 26.1 min. Rf = 0.38 (20% EtOAc/hexanes); mp = 149-151 °C; Rf = 0.38 (20% EtOAc/hexanes); IR (film) 3359, 1687, 1561, 1509, 1352, 1251, 1162, 1039, 1027, 834, 736 cm-1; 1H NMR pdf(400 MHz, CDCl3, 1.2:1 mixture of diastereomers) δ: 1.45 (s, 9H), 1.46 (s, 9H), 5.05 (s, 2H), 5.06 (s, 2H), 5.38 (d, J = 9.2 Hz, 1H), 5.42 (br s, 1H), 5.57 (dd, J = 8.9 and 4.3 Hz, 1H), 5.68 (br s, 1H), 6.27 (d, J = 2.5 Hz, 1H), 6.31 (d, J = 4.1 Hz, 1H), 6.96 (m, 2H), 6.99 (m, 2H), 7.21 (d, J = 8.6 Hz, 2H), 7.24 (d, J = 8.6 Hz, 2H), 7.31-7.45 (m, 10H); 13C NMR pdf(101 MHz, CDCl3) δ: 28.1, 28.2, 57.6, 57.8, 70.1 (2C), 81.0, 81.1, 82.0 (2C), 85.1, 115.2, 115.3, 126.8 (2C), 127.4 (2C), 128.1 (2C), 128.2 (2C), 128.3 (2C), 128.7 (2C), 136.5 (2C), 154.4, 154.7, 159.2, 159.3; HRMS (ESI): Exact mass calcd for C20H23BrN2NaO5 [M+Na]+ 473.0683, found 473.0685; Anal. calcd. for C20H23BrN2O5: C, 53.23; H, 5.14; N, 6.21; found: C, 53.04; H, 5.17; N, 6.13.
Working with Hazardous Chemicals
The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.
The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
The amide bond might be considered a treasured functional group within organic synthesis, owing to its natural abundance among small molecules and peptidic biomolecules, its utility within the process of drug development, and the existence of an array of methods and reagents to prepare amides. The role of synthetic peptides and peptidomimetics among marketed pharmaceuticals continues to increase, with over 50 approved as medicines.4 This has resulted in substantial pressure to improve amide bond-forming methods, particularly those reliant on 'coupling reagents' used for carboxylic acid-amine condensations.5 This has accelerated innovation in amide bond synthesis, leading to a range of new methods.6
We discovered that α-bromo nitroalkanes could engage amines in amide bond formation with the assistance of N-iodosuccinimide.7 Evidence collected during the initial study, and conistent with subsequent mechanistic studies, suggested that the key carbon-nitrogen bond-forming step involved a nucleophilic nitronate carbon and an electrophilic iodamine nitrogen.8 This inversion of polarity relative to all other known amide bond-forming reactions led to our description of this reaction as Umpolung Amide Synthesis (UmAS).9

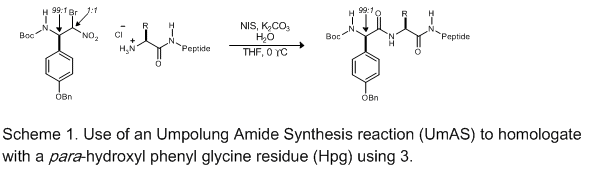

This preparation highlights the utility of bis(amidine)-based organocatalysis in enantioselective α-amino amide synthesis. Oxygenated aryl glycines are observed in a range of interesting peptidic natural products, including the vancomycin class of antibiotics. para-Hydroxy phenyl glycine (Hpg) is a key component of cephadroxil and feglymycin,10 and in vancomycin where it is crosslinked and/or halogenated.11 Use of the Sharpless aminohydroxylation reaction remains a prevailing approach to Hpg based on enantioselective catalysis, targeting the protected α-amino acid for the homologation step.12 The preparation described above provides gram-scale access to α-bromo nitroalkanes 3 which converge during UmAS to achieve homologation with (protected) D-Hpg. The coupling of aryl glycines using conventional dehydrating agents and a carboxylic acid donor is subject to competitive epimerization of the α-stereocenter.13 Preservation of this stereochemical integrity is a key advantage of UmAS due to its unique mechanism which avoids an electrophilic active ester and acidic α-C-H bond.
This practical three-step protocol is straightforward, is characterized by a good overall yield, and does not require any chromatographic purification steps. In the first two steps the corresponding aldehyde was converted into an imine via an α-amido sulfone intermediate by a similar procedure previously described.3 The final enantioselective organocatalytic aza-Henry step with bromonitromethane was conducted in the presence of 5 mol % of PBAM catalyst.4 Filtration of the reaction through a plug of silica gel alleviates the need for chromatography and simplifies the isolation of the product. The α-bromonitroalkanes 3 are obtained with high ee (95-97%) and good overall yield for use directly in an UmAS coupling.
